EFM32ZG110F4-QFN24
UnknownSilicon Labs
IC: ARM MICROCONTROLLER; 24MHZ; QFN24; 2KBRAM,4KBFLASH; PWM: 2
Deep-Dive with AI
Search across all available documentation for this part.
EFM32ZG110F4-QFN24
UnknownSilicon Labs
IC: ARM MICROCONTROLLER; 24MHZ; QFN24; 2KBRAM,4KBFLASH; PWM: 2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EFM32ZG110F4-QFN24 |
|---|---|
| Connectivity | I2C, UART/USART, SPI, IrDA, EBI/EMI, SmartCard |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Data Converters | A/D 2x12b, D/A 1x12b |
| Mounting Type | Surface Mount |
| Number of I/O | 17 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |

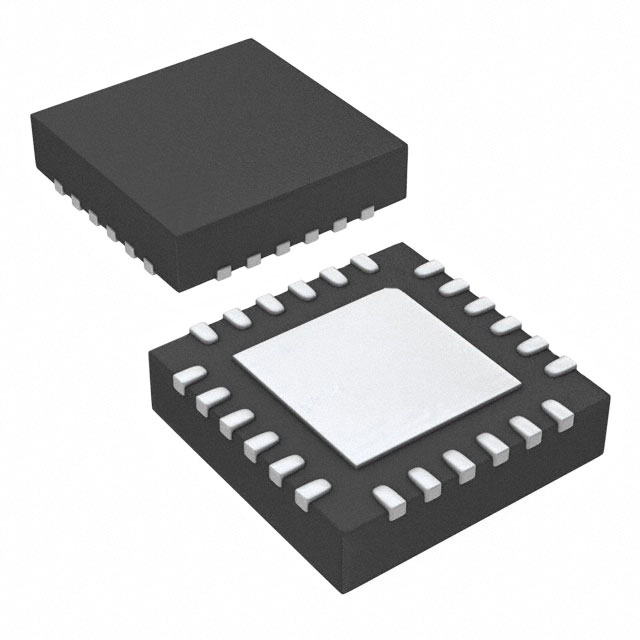

| Package / Case | 24-VQFN Exposed Pad |
| Peripherals | Brown-out Detect/Reset, DMA, POR, WDT, PWM, I2S |
| Program Memory Size | 4 KB |
| Program Memory Type | FLASH |
| RAM Size | 2K x 8 |
| Speed | 24 MHz |
| Supplier Device Package | 24-QFN (5x5) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.8 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.98 V |
zero-gecko Series
| Part | Peripherals | Speed | Mounting Type | Package / Case | RAM Size | Core Processor | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Program Memory Size | Supplier Device Package | Oscillator Type | Data Converters | Program Memory Type | Core Size | Number of I/O | Operating Temperature [Max] | Operating Temperature [Min] | Connectivity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Silicon Labs | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 MHz | Surface Mount | 24-VQFN Exposed Pad | 2K x 8 | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 4 KB | 24-QFN (5x5) | Internal | A/D 2x12b D/A 1x12b | FLASH | 32-Bit Single-Core | 17 | 85 °C | -40 °C | EBI/EMI I2C IrDA SmartCard SPI UART/USART |
Silicon Labs | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 MHz | Surface Mount | 24-VQFN Exposed Pad | 4K x 8 | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 32 KB | 24-QFN (5x5) | Internal | A/D 2x12b D/A 1x12b | FLASH | 32-Bit Single-Core | 17 | 85 °C | -40 °C | EBI/EMI I2C IrDA SmartCard SPI UART/USART |
Silicon Labs | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 MHz | Surface Mount | 24-VQFN Exposed Pad | 4K x 8 | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 32 KB | 24-QFN (5x5) | Internal | FLASH | 32-Bit Single-Core | 17 | 85 °C | -40 °C | I2C IrDA SmartCard SPI UART/USART | |
Silicon Labs | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 MHz | Surface Mount | 24-VQFN Exposed Pad | 4K x 8 | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 32 KB | 24-QFN (5x5) | Internal | FLASH | 32-Bit Single-Core | 17 | 85 °C | -40 °C | I2C IrDA SmartCard SPI UART/USART | |
Silicon Labs | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 MHz | Surface Mount | 24-VQFN Exposed Pad | 4K x 8 | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 32 KB | 24-QFN (5x5) | Internal | FLASH | 32-Bit Single-Core | 17 | 85 °C | -40 °C | I2C IrDA SmartCard SPI UART/USART | |
Silicon Labs | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 MHz | Surface Mount | 24-VQFN Exposed Pad | 2K x 8 | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 4 KB | 24-QFN (5x5) | Internal | A/D 2x12b D/A 1x12b | FLASH | 32-Bit Single-Core | 17 | 85 °C | -40 °C | EBI/EMI I2C IrDA SmartCard SPI UART/USART |
Silicon Labs | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 MHz | Surface Mount | 24-VQFN Exposed Pad | 2K x 8 | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 4 KB | 24-QFN (5x5) | Internal | A/D 2x12b D/A 1x12b | FLASH | 32-Bit Single-Core | 17 | 85 °C | -40 °C | EBI/EMI I2C IrDA SmartCard SPI UART/USART |
Silicon Labs | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 MHz | Surface Mount | 24-VQFN Exposed Pad | 4K x 8 | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 16 KB | 24-QFN (5x5) | Internal | FLASH | 32-Bit Single-Core | 17 | 85 °C | -40 °C | I2C IrDA SmartCard SPI UART/USART | |
Silicon Labs | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 MHz | Surface Mount | 24-VQFN Exposed Pad | 2K x 8 | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 24-QFN (5x5) | Internal | FLASH | 32-Bit Single-Core | 17 | 85 °C | -40 °C | I2C IrDA SmartCard SPI UART/USART | ||
Silicon Labs | Brown-out Detect/Reset DMA I2S POR PWM WDT | 24 MHz | Surface Mount | 24-VQFN Exposed Pad | 2K x 8 | ARM® Cortex®-M0+ | 1.98 V | 3.8 V | 4 KB | 24-QFN (5x5) | Internal | A/D 2x12b D/A 1x12b | FLASH | 32-Bit Single-Core | 17 | 85 °C | -40 °C | EBI/EMI I2C IrDA SmartCard SPI UART/USART |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| TME | N/A | 1 | $ 15.33 | |
| 3 | $ 14.19 | |||
| 5 | $ 13.06 | |||
Description
General part information
zero-gecko Series
ARM® Cortex®-M0+ Zero Gecko Microcontroller IC 32-Bit Single-Core 24MHz 4KB (4K x 8) FLASH 24-QFN (5x5)
