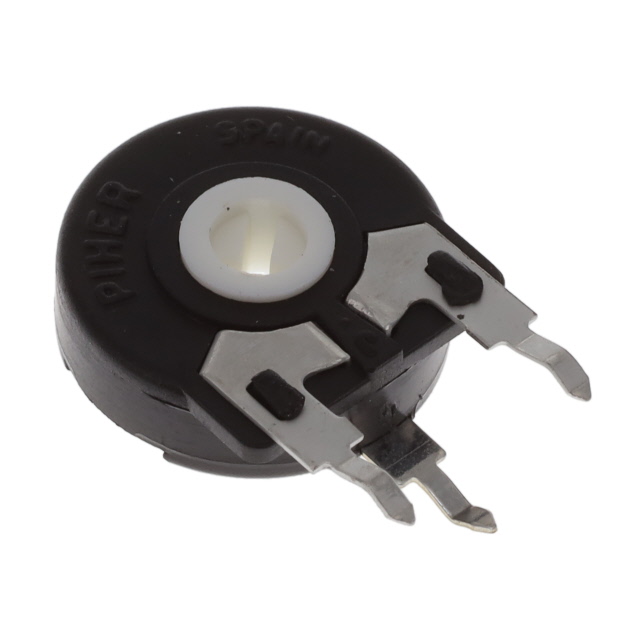

TRIMMER 5K OHM 0.25W PC PIN SIDE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PT15LH06-502A2020-S
ActiveAmphenol Piher Sensing Systems
TRIMMER 5K OHM 0.25W PC PIN SIDE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PT15LH06-502A2020-S |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance | 5 kOhms |
| Resistive Material | Carbon |
| Size / Dimension [diameter] | 15 mm |
| Size / Dimension [diameter] | 0.591 in |
| Temperature Coefficient | 300 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 20 % |
PT15LH06 Series
| Part | Temperature Coefficient | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type | Resistive Material | Power (Watts) | Power (Watts) | Number of Turns | Resistance | Tolerance | Adjustment Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Piher Sensing Systems | 300 ppm/°C | 15 mm | 0.591 in | Through Hole | Carbon | 0.25 W | 250 mW | 1 | 500 Ohms | 20 % | Side Adjustment | PC Pins |
Amphenol Piher Sensing Systems | 300 ppm/°C | 15 mm | 0.591 in | Through Hole | Carbon | 0.25 W | 250 mW | 1 | 25 kOhms | 20 % | Side Adjustment | PC Pins |
Amphenol Piher Sensing Systems | 300 ppm/°C | 15 mm | 0.591 in | Through Hole | Carbon | 0.25 W | 250 mW | 1 | 20 % | Side Adjustment | PC Pins | |
Amphenol Piher Sensing Systems | 300 ppm/°C | 15 mm | 0.591 in | Through Hole | Carbon | 0.25 W | 250 mW | 1 | 2 MOhms | 30 % | Side Adjustment | PC Pins |
Amphenol Piher Sensing Systems | 300 ppm/°C | 15 mm | 0.591 in | Through Hole | Carbon | 0.25 W | 250 mW | 1 | 1000 Ohms | 20 % | Side Adjustment | PC Pins |
Amphenol Piher Sensing Systems | 300 ppm/°C | 15 mm | 0.591 in | Through Hole | Carbon | 0.25 W | 250 mW | 1 | 2.5 kOhms | 20 % | Side Adjustment | PC Pins |
Amphenol Piher Sensing Systems | 300 ppm/°C | 15 mm | 0.591 in | Through Hole | Carbon | 0.25 W | 250 mW | 1 | 5 kOhms | 20 % | Side Adjustment | PC Pins |
Amphenol Piher Sensing Systems | 300 ppm/°C | 15 mm | 0.591 in | Through Hole | Carbon | 0.25 W | 250 mW | 1 | 250 kOhms | 20 % | Side Adjustment | PC Pins |
Amphenol Piher Sensing Systems | 300 ppm/°C | 15 mm | 0.591 in | Through Hole | Carbon | 0.25 W | 250 mW | 1 | 20 kOhms | 20 % | Side Adjustment | PC Pins |
Amphenol Piher Sensing Systems | 300 ppm/°C | 15 mm | 0.591 in | Through Hole | Carbon | 0.25 W | 250 mW | 1 | 1 MOhms | 20 % | Side Adjustment | PC Pins |
