RJ2S-CD-D12

Active

IDEC Corporation

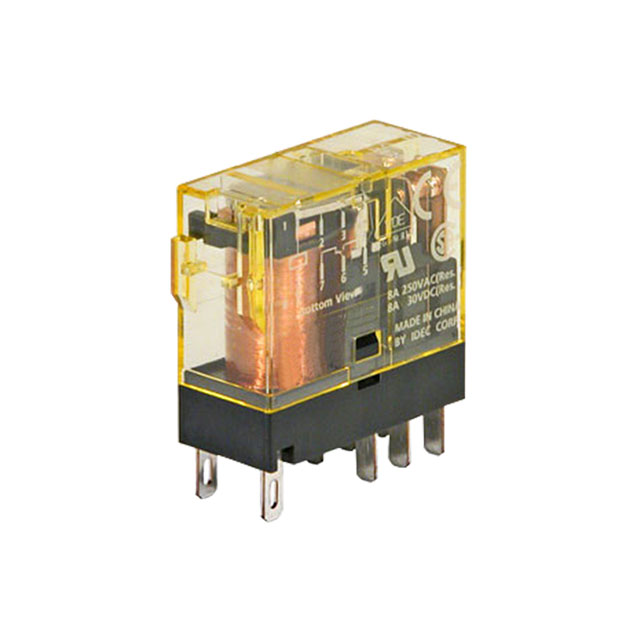

RELAY PLUG-IN DPDT 8A 12VDC ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RJ2S-CD-D12

Active

IDEC Corporation

RELAY PLUG-IN DPDT 8A 12VDC ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.28
		10	$ 8.70
		25	$ 7.74
		50	$ 7.35
		100	$ 6.96
		250	$ 6.19
		500	$ 5.80
		1000	$ 5.42
Newark	Each	1	$ 9.54
		10	$ 9.12
		100	$ 8.72

Description

General part information

RJ2S-C Series

General Purpose Relay DPDT (2 Form C) 12VDC Coil Socketable

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RJ2S-CD-D12	RJ2S-C Series

Approval Agency	CE, VDE, cURus, CSA	CE, VDE, cURus, CSA
Coil Current	44.2 mA	3.7 - 106 mA
Coil Resistance	271 Ohms	1.08 - 271 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	5 - 240 VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Contact Rating (Current)	8 A	8 A
Features	Diode	Lighted Indicator, Diode
Mounting Type	Socketable	Socketable
Must Operate Voltage	8.4 VDC	3.5 - 192 VDC
Must Release Voltage	1.2 VDC	0.5 - 72 VDC
Operate Time	20 ms	15 - 20 ms
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	20 ms	10 - 20 ms
Switching Voltage	250 VAC	30 - 250 VAC
Termination Style	Plug In	Plug In, Plug In, Quick Connect - 0.187" (4.7mm)

RJ2S-C Series

POWER RELAY, LED INDICATOR, DPDT, 24 VDC, 8 A, RJ SERIES, SOCKET, NON LATCHING

Part	Coil Resistance	Switching Voltage	Contact Rating (Current)	Release Time	Coil Type	Must Operate Voltage	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Mounting Type	Coil Voltage	Termination Style	Relay Type	Approval Agency	Operate Time	Contact Form	Coil Current	Must Release Voltage
IDEC Corporation RJ2S-CL-D24	1.08 kOhms	250 VAC	8 A	10 ms	Non Latching	16.8 VDC	Lighted Indicator	-40 °C	70 °C	Silver Nickel (AgNi)	Socketable	24 VDC	Plug In	General Purpose	CE, CSA, cURus, VDE	15 ms	DPDT (2 Form C)	25.7 mA	2.4 VDC
IDEC Corporation RJ2S-C-A240	25.57 kOhms	30 VDC, 250 VAC	8 A	10 ms	Non Latching	192 VAC		-40 °C	70 °C	Silver Nickel (AgNi)	Socketable	240 VAC		General Purpose	CE, CSA, cURus, VDE	15 ms	DPDT (2 Form C)	3.7 mA	72 VAC/DC
IDEC Corporation RJ2S-CLD-D24	1.08 kOhms	250 VAC	8 A	20 ms	Non Latching	16.8 VDC	Diode, Lighted Indicator	-40 °C	70 °C	Silver Nickel (AgNi)	Socketable	24 VDC	Plug In	General Purpose	CE, CSA, cURus, VDE	20 ms	DPDT (2 Form C)	25.7 mA	2.4 VDC
IDEC Corporation RJ2S-CD-D5	47.2 Ohms	30 VDC, 250 VAC	8 A	10 ms	Non Latching	3.5 VDC	Diode	-40 °C	70 °C	Silver Nickel (AgNi)	Socketable	5 VDC	Plug In, Quick Connect - 0.187" (4.7mm)	General Purpose	CE, CSA, cURus, VDE	15 ms	DPDT (2 Form C)	106 mA	0.5 VDC
IDEC Corporation RJ2S-CL-A240	25.57 kOhms	250 VAC	8 A	10 ms	Non Latching	192 VAC	Lighted Indicator	-40 °C	70 °C	Silver Nickel (AgNi)	Socketable	240 VAC	Plug In	General Purpose	CE, CSA, cURus, VDE	15 ms	DPDT (2 Form C)	3.7 mA	72 VAC/DC
IDEC Corporation RJ2S-C-A120	6.4 kOhms	250 VAC	8 A	10 ms	Non Latching	96 VAC		-40 °C	70 °C	Silver Nickel (AgNi)	Socketable	120 VAC	Plug In	General Purpose	CE, CSA, cURus, VDE	15 ms	DPDT (2 Form C)	7.5 mA	36 VAC
IDEC Corporation RJ2S-C-D12	271 Ohms	30 VDC, 250 VAC	8 A	10 ms	Non Latching	8.4 VDC		-40 °C	70 °C	Silver Nickel (AgNi)	Socketable	12 VDC		General Purpose	CE, CSA, cURus, VDE	15 ms	DPDT (2 Form C)	44.2 mA	1.2 VDC
IDEC Corporation RJ2S-CD-D12	271 Ohms	250 VAC	8 A	20 ms	Non Latching	8.4 VDC	Diode	-40 °C	70 °C	Silver Nickel (AgNi)	Socketable	12 VDC	Plug In	General Purpose	CE, CSA, cURus, VDE	20 ms	DPDT (2 Form C)	44.2 mA	1.2 VDC
