LMSP-3-01
ActiveEssentra Access Solutions

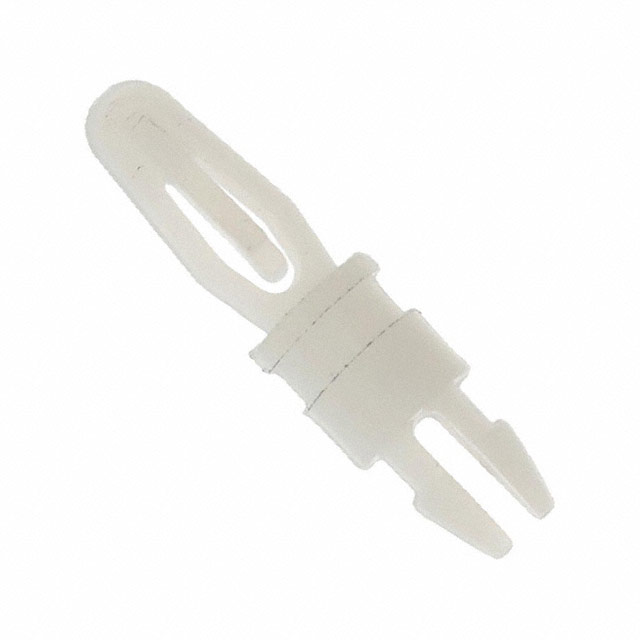

BRD SPT SNAP LOCK NYLON 3/16"
Deep-Dive with AI
Search across all available documentation for this part.
LMSP-3-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 3/16"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LMSP-3-01 |
|---|---|
| Between Board Height | 0.188 " |
| Between Board Height | 4.78 mm |
| Between Board Height | 0.1875 " |
| Holding Type | Snap Lock |
| Length - Overall | 18.26 mm |
| Length - Overall [x] | 0.719 in |
| Material | Nylon |
| Mounting Hole Diameter | 0.125 in |
| Mounting Hole Diameter | 0.125 in |
| Mounting Hole Diameter | 3.18 mm |
| Mounting Panel Thickness | 0.062 in |
| Mounting Panel Thickness | 0.0625 in |
| Mounting Panel Thickness | 1.57 mm |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.125 in |
| Support Hole Diameter [diameter] | 0.125 in |
| Support Hole Diameter [diameter] | 3.18 mm |
| Support Panel Thickness | 0.0625 " |
| Support Panel Thickness | 0.062 " |
| Support Panel Thickness | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.20 | |
| 5 | $ 0.17 | |||
| 10 | $ 0.14 | |||
| 25 | $ 0.14 | |||
| 50 | $ 0.13 | |||
| 100 | $ 0.12 | |||
| 250 | $ 0.11 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.10 | |||
Description
General part information
LMSP-3 Series
Board Support Snap Lock / Snap Lock Nylon 0.188" (4.78mm) 3/16"
