Q-0I0150001018i

Active

Amphenol Custom Cable

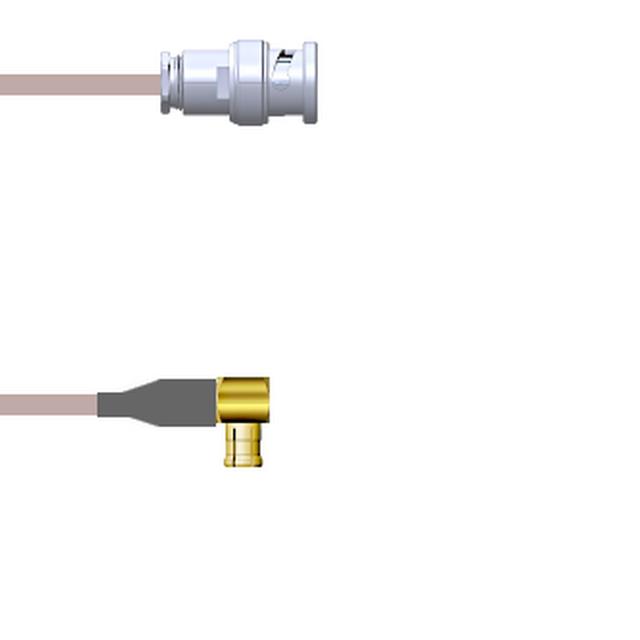

CBL ASSY BNC-MCX PLUG-PLUG 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0I0150001018i

Active

Amphenol Custom Cable

CBL ASSY BNC-MCX PLUG-PLUG 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0I0150001018i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	BNC to MCX

Q-0I0150 Series

Part	2nd Connector	Cable Type	2nd Connector Mounting Type	Overall Impedance	Length	Length	1st Connector	1st Connector Mounting Type	Features	Frequency - Max [Max]	Style	Color	2nd Contact Gender	1st Contact Gender	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0I0150001012i	MCX Plug Right Angle	RG-178	Free Hanging (In-Line)	50 Ohms	12 "	304.8 mm	BNC Plug	Free Hanging (In-Line)	Shielded	4 GHz	BNC to MCX	Copper	Male	Male
Amphenol Custom Cable Q-0I0150001060i	MCX Plug Right Angle	RG-178	Free Hanging (In-Line)	50 Ohms	5 '	1.5 m	BNC Plug	Free Hanging (In-Line)	Shielded	4 GHz	BNC to MCX	Copper	Male	Male	5 ft
Amphenol Custom Cable Q-0I0150001003M	MCX Plug Right Angle	RG-178	Free Hanging (In-Line)	50 Ohms	118.1 in	3 m	BNC Plug	Free Hanging (In-Line)	Shielded	4 GHz	BNC to MCX	Copper	Male	Male	9.8 '
Amphenol Custom Cable Q-0I0150001.75M	MCX Plug Right Angle	RG-178	Free Hanging (In-Line)	50 Ohms	29.53 "	750 mm	BNC Plug	Free Hanging (In-Line)	Shielded	4 GHz	BNC to MCX	Copper	Male	Male
Amphenol Custom Cable Q-0I01500012.5M	MCX Plug Right Angle	RG-178	Free Hanging (In-Line)	50 Ohms	98.4 in	2.5 m	BNC Plug	Free Hanging (In-Line)	Shielded	4 GHz	BNC to MCX	Copper	Male	Male	8.2 '
Amphenol Custom Cable Q-0I0150001001M	MCX Plug Right Angle	RG-178	Free Hanging (In-Line)	50 Ohms	39.4 in	1 m	BNC Plug	Free Hanging (In-Line)	Shielded	4 GHz	BNC to MCX	Copper	Male	Male	3.3 ft
Amphenol Custom Cable Q-0I0150001084i	MCX Plug Right Angle	RG-178	Free Hanging (In-Line)	50 Ohms	84 in	2.1 m	BNC Plug	Free Hanging (In-Line)	Shielded	4 GHz	BNC to MCX	Copper	Male	Male	7 ft
Amphenol Custom Cable Q-0I0150001036i	MCX Plug Right Angle	RG-178	Free Hanging (In-Line)	50 Ohms	36 in	91.44 cm	BNC Plug	Free Hanging (In-Line)	Shielded	4 GHz	BNC to MCX	Copper	Male	Male
Amphenol Custom Cable Q-0I0150001018i	MCX Plug Right Angle	RG-178	Free Hanging (In-Line)	50 Ohms			BNC Plug	Free Hanging (In-Line)	Shielded	4 GHz	BNC to MCX	Copper	Male	Male		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0I0150001072i	MCX Plug Right Angle	RG-178	Free Hanging (In-Line)	50 Ohms	72 in	1.8 m	BNC Plug	Free Hanging (In-Line)	Shielded	4 GHz	BNC to MCX	Copper	Male	Male	6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 74.61
		25	$ 73.16
		50	$ 71.71
		100	$ 70.26
		250	$ 68.81

Description

General part information

Q-0I0150 Series

Cable Assembly Coaxial BNC to MCX RG-178 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
