FVN.03.250.CLAC31

Active

LEMO

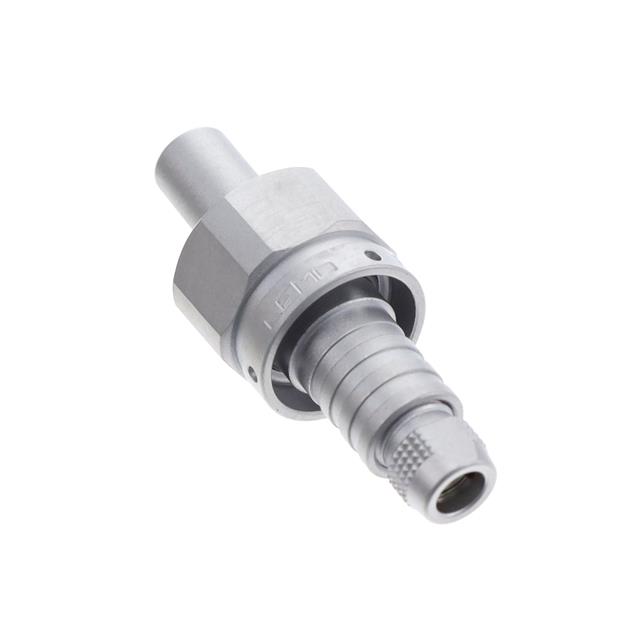

CONN INLINE PLUG COAX PIN SLDER

Search across all available documentation for this part.

Active

LEMO

CONN INLINE PLUG COAX PIN SLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

CONN COAX PLUG STR 50OHM SOLDER

Part	Housing Color	Contact Termination	Body Finish	Impedance	Cable Group	Dielectric Material	Connector Type	Mating Cycles	Body Material	Shield Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Frequency - Max [Max]	Center Contact Material	Ingress Protection	Connector Style	Fastening Type	Number of Ports
LEMO FVN.03.250.CLAC31Z	Silver	Solder	Chrome	50 Ohms	RG-174A	Polyetheretherketone (PEEK)	Male Pin, Plug	1000	Brass	Crimp	Free Hanging (In-Line)	-20 C	200 °C	Gold	500 MHz	Brass	IP68 - Dust Tight, Waterproof	Coaxial
LEMO FVN.03.250.CLAC27	Silver	Solder	Chrome	50 Ohms	316, RG-188A	Polyetheretherketone (PEEK)	Male Pin, Plug	1000	Brass	Clamp	Free Hanging (In-Line)	-20 C	200 °C	Gold	500 MHz	Brass	IP68 - Dust Tight, Waterproof	Coaxial	Push-Pull
LEMO FVN.03.250.CLAC31	Silver	Solder	Chrome	50 Ohms	RG-174A	Polyetheretherketone (PEEK)	Male Pin, Plug	1000	Brass	Clamp	Free Hanging (In-Line)	-20 C	200 °C	Gold	500 MHz	Brass	IP68 - Dust Tight, Waterproof	Coaxial	Push-Pull
LEMO FVN.03.250.CLAC27Z	Silver	Solder	Chrome	50 Ohms		Polyetheretherketone (PEEK)	Male Pin, Plug		Brass	Clamp	Free Hanging (In-Line)	-20 C	200 °C	Gold			IP68 - Dust Tight, Waterproof	Coaxial	Push-Pull	1
