43-01012

Active

Amphenol CONEC

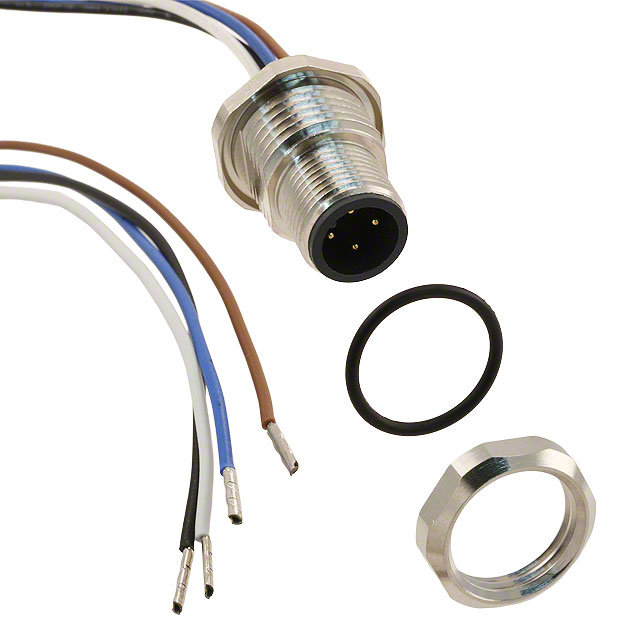

CABLE ASSY, 4P M12 PLUG-FREE END, 500MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

43-01012

Active

Amphenol CONEC

CABLE ASSY, 4P M12 PLUG-FREE END, 500MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	43-01012

1st Connector Gender	Male Pins
1st Connector Mounting Type	Panel Mount
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Individual
Color	Multiple
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Unshielded
Usage	Industrial Environments

43-0101 Series

Part	1st Connector Number of Positions	Cable Material	Cable Type	2nd Connector Type	Ingress Protection	1st Connector Orientation	1st Connector Shell Size - Insert	1st Connector Number of Positions Loaded	1st Connector Mounting Type	1st Connector Type	Shielding	Usage	Length [x]	Length [x]	Assembly Configuration	Color	1st Connector Gender
Amphenol CONEC 43-01017	8 positions	Polyvinyl Chloride (PVC)	Individual	Wire Leads	IP67 - Dust Tight Waterproof	A	M12	All	Panel Mount	Receptacle	Unshielded	Industrial Environments	1.64 ft	500 mm	Standard	Multiple	Male Pins
Amphenol CONEC 43-01010	5	Polyvinyl Chloride (PVC)	Individual	Wire Leads	IP67 - Dust Tight Waterproof	A	M12	All	Panel Mount	Receptacle	Unshielded	Industrial Environments	1.64 ft	500 mm	Standard	Multiple	Male Pins
Amphenol CONEC 43-01012	4	Polyvinyl Chloride (PVC)	Individual	Wire Leads	IP67 - Dust Tight Waterproof	A	M12	All	Panel Mount	Receptacle	Unshielded	Industrial Environments	1.64 ft	500 mm	Standard	Multiple	Male Pins
Amphenol CONEC 43-01019	5	Polyvinyl Chloride (PVC)	Individual	Wire Leads	IP69K - Dust Tight High Temp Water Jets Waterproof	A	M12	All	Panel Mount	Plug	Unshielded	Industrial Environments	1.64 ft	500 mm	Standard	Multiple	Female Sockets
Amphenol CONEC 43-01014	8 positions	Polyvinyl Chloride (PVC)	Individual	Wire Leads	IP67 - Dust Tight Waterproof	A	M12	All	Panel Mount	Receptacle	Unshielded	Industrial Environments	1.64 ft	500 mm	Standard	Multiple	Male Pins
Amphenol CONEC 43-01016	5	Polyvinyl Chloride (PVC)	Individual	Wire Leads	IP67 - Dust Tight Waterproof	A	M12	All	Panel Mount	Receptacle	Unshielded	Industrial Environments	1.64 ft	500 mm	Standard	Multiple	Male Pins
Amphenol CONEC 43-01011	8 positions	Polyvinyl Chloride (PVC)	Individual	Wire Leads	IP67 - Dust Tight Waterproof	A	M12	All	Panel Mount	Receptacle	Unshielded	Industrial Environments	1.64 ft	500 mm	Standard	Multiple	Male Pins
Amphenol CONEC 43-01015	4	Polyvinyl Chloride (PVC)	Individual	Wire Leads	IP67 - Dust Tight Waterproof	A	M12	All	Panel Mount	Receptacle	Unshielded	Industrial Environments	1.64 ft	500 mm	Standard	Multiple	Male Pins
Amphenol CONEC 43-01013	5	Polyvinyl Chloride (PVC)	Individual	Wire Leads	IP67 - Dust Tight Waterproof	A	M12	All	Panel Mount	Receptacle	Unshielded	Industrial Environments	1.64 ft	500 mm	Standard	Multiple	Male Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 15.84
		10	$ 14.04
		25	$ 13.50
		50	$ 12.96
		100	$ 12.24
		250	$ 11.16
		500	$ 10.44
		1000	$ 9.58
Newark	Each	1	$ 10.38
		10	$ 9.60
		25	$ 8.93
		50	$ 8.35
		100	$ 7.89
		250	$ 7.42

Description

General part information

43-0101 Series

Circular Cable Assembly Unshielded 1.64' (500.00mm)
