3403.0165.11

Active

SCHURTER Inc.

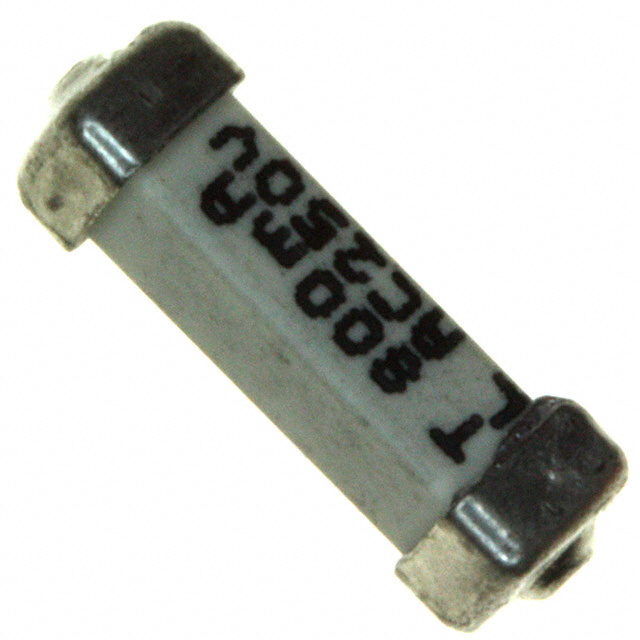

FUSE BRD MNT 800MA 250VAC 125VDC

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE BRD MNT 800MA 250VAC 125VDC

Technical Specifications

Parameters and characteristics for this part

Specification	3403.0165.11

Approval Agency	cURus, CQC, KC, VDE, UL
Breaking Capacity @ Rated Voltage	200 A, 35 A
Current Rating (Amps)	800 mA
Fuse Type	Board Mount
Melting I²t	1.4
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2-SMD, Square End Block
Response Time	Slow Blow
Size / Dimension [x]	10.1 mm
Size / Dimension [x]	0.398 in
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Size / Dimension [z]	0.118 "
Size / Dimension [z]	3 mm
Voltage Rating - AC	250 V
Voltage Rating - DC	125 VDC

FUSE BRD MNT 800MA 250VAC 125VDC

Part	Response Time	Breaking Capacity @ Rated Voltage	Fuse Type	Approval Agency	Package / Case	Voltage Rating - AC	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage Rating - DC	Current Rating (Amps)	Melting I²t
SCHURTER Inc. 3403.0165.11	Slow Blow	35 A, 200 A	Board Mount	CQC, cURus, KC, UL, VDE	2-SMD, Square End Block	250 V	Surface Mount	-55 °C	125 °C	3 mm	10.1 mm	0.398 in	0.118 in	0.118 "	3 mm	125 VDC	800 mA	1.4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

800 mA 250 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
