1-926475-0

Active

TE Connectivity AMP Connectors

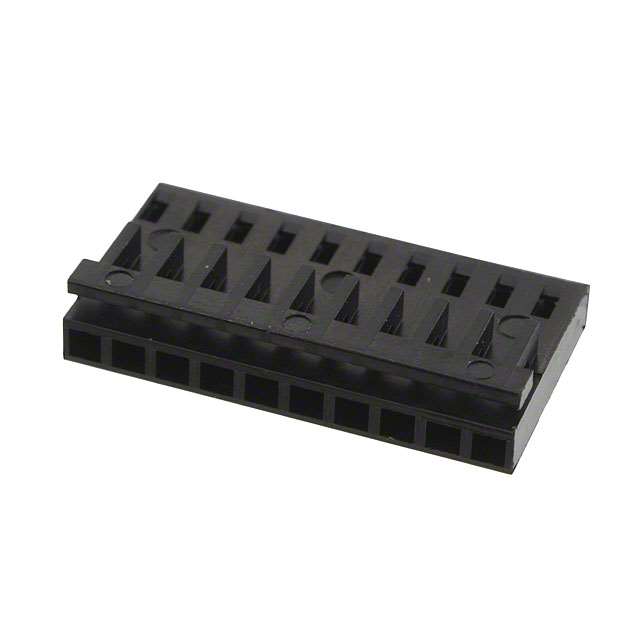

CONN RCPT HSG 10POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 10POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-926475-0	926475 Series

Color	Black	Black
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	10	4 - 30
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in

CONN RCPT HSG 3POS 2.54MM

Part	Note	Number of Rows	Contact Termination	Contact Type	Insulation Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Pitch [x]	Pitch [x]	Mounting Type	Number of Positions
TE Connectivity AMP Connectors 926475-3	Contacts Not Included	1	Crimp	Female Socket	Polybutylene Terephthalate (PBT), Glass Filled	Black	-65 ░C	105 ░C	Receptacle	2.54 mm	0.1 in	Free Hanging (In-Line)
TE Connectivity AMP Connectors 3-926475-0	Contacts Not Included	1	Crimp	Female Socket	Polybutylene Terephthalate (PBT), Glass Filled	Black	-65 ░C	105 ░C	Receptacle	2.54 mm	0.1 in	Free Hanging (In-Line)	30
TE Connectivity AMP Connectors 1-926475-2	Contacts Not Included	1	Crimp	Female Socket	Polybutylene Terephthalate (PBT), Glass Filled	Black	-65 ░C	105 ░C	Receptacle	2.54 mm	0.1 in	Free Hanging (In-Line)	12
TE Connectivity AMP Connectors 926475-4	Contacts Not Included	1	Crimp	Female Socket	Polybutylene Terephthalate (PBT), Glass Filled	Black	-65 ░C	105 ░C	Receptacle	2.54 mm	0.1 in	Free Hanging (In-Line)	4
TE Connectivity AMP Connectors 1-926475-0	Contacts Not Included	1	Crimp	Female Socket	Polybutylene Terephthalate (PBT), Glass Filled	Black	-65 ░C	105 ░C	Receptacle	2.54 mm	0.1 in	Free Hanging (In-Line)	10
TE Connectivity AMP Connectors 926475-8	Contacts Not Included	1	Crimp	Female Socket	Polybutylene Terephthalate (PBT), Glass Filled	Black	-65 ░C	105 ░C	Receptacle	2.54 mm	0.1 in	Free Hanging (In-Line)	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	8000	$ 1.05

General part information

10 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Technical documentation and resources

No documents available
