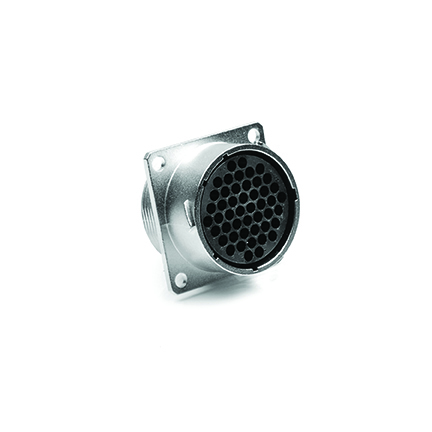

RT002448SNH03
ActiveAmphenol Sine Systems Corp
RECEPTACLE, SQUARE FLANGE, 48 PO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT002448SNH03
ActiveAmphenol Sine Systems Corp
RECEPTACLE, SQUARE FLANGE, 48 PO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT002448SNH03 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Cap (Cover) |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 48 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert [Max] | 48 |
| Shell Size - Insert [Min] | 24 |
| Shielding | Shielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 26.30 | |
| 10 | $ 20.28 | |||
| 25 | $ 18.37 | |||
| 50 | $ 17.08 | |||
| 100 | $ 15.91 | |||
| 250 | $ 14.53 | |||
| 500 | $ 13.60 | |||
Description
General part information
RT002248 Series
48 Position Circular Connector Receptacle Housing Panel Mount Cap (Cover)
