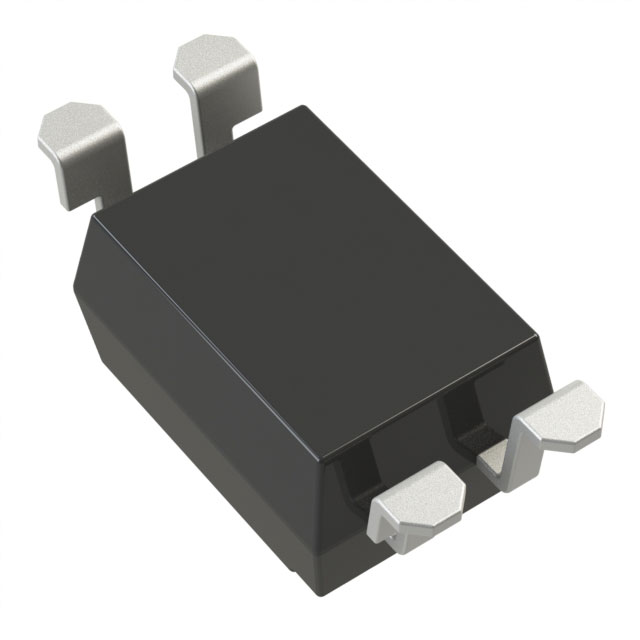

PC123X1YIP1B

Active

SHARP/Socle Technology

OPTOISOLATOR

Search across all available documentation for this part.

Active

SHARP/Socle Technology

OPTOISOLATOR

Technical Specifications

Parameters and characteristics for this part

Specification	PC123X1YIP1B

Current - DC Forward (If) (Max)	50 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Max)	400 %
Current Transfer Ratio (Min) [Min]	50 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Output Type	1.81 mOhm
Package / Case	4-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	3 µs
Rise / Fall Time (Typ) [custom]	4 µs
Supplier Device Package	4-SMD
Vce Saturation (Max)	200 mV
Voltage - Isolation	890 Vpk

OPTOISOLATOR

Part	Current - DC Forward (If) (Max)	Vce Saturation (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Input Type	Current - Output / Channel	Voltage - Isolation	Package / Case	Current Transfer Ratio (Min) [Min]	Supplier Device Package	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Output Type	Current Transfer Ratio (Max)	Number of Channels
SHARP/Socle Technology PC123X1YIP1B	50 mA	200 mV	100 °C	-30 ░C	Surface Mount	DC	50 mA	890 Vpk	4-SMD, Gull Wing	50 %	4-SMD	3 µs	4 µs	1.81 mOhm	400 %	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Optoisolator Transistor Output 890Vpk 1 Channel 4-SMD
