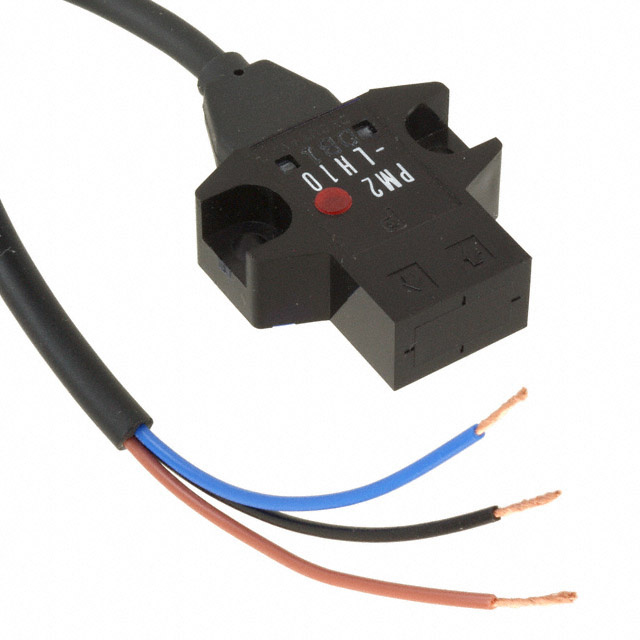

PM2-LH10-C1

Active

Panasonic Industrial Automation Sales

SENSOR REFLECTV 5MM NPN OPEN COL

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

SENSOR REFLECTV 5MM NPN OPEN COL

Technical Specifications

Parameters and characteristics for this part

Specification	PM2-LH10-C1

Cable Length	100 cm
Cable Length	39.37 in
Connection Method	Cable
Light Source	Infrared
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	NPN - Open Collector
Response Time	800 µs
Sensing Distance	0.197 in
Sensing Distance	5 mm
Sensing Method	Convergent, Reflective
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	5 V

Part	Light Source	Connection Method	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Configuration	Response Time	Cable Length	Cable Length	Sensing Distance	Sensing Distance	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]
Panasonic Industrial Automation Sales PM2-LH10-C1	Infrared	Cable	Convergent Reflective	24 V	5 V	NPN - Open Collector	800 µs	100 cm	39.37 in	0.197 in	5 mm	55 °C	-10 °C
Panasonic Industrial Automation Sales PM2-LH10B	Infrared	Connector	Convergent Reflective	24 V	5 V	NPN - Open Collector	800 µs			0.197 in	5 mm	55 °C	-10 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Reflective, Convergent Optical Sensor 0.197" (5mm) NPN - Open Collector
