PLR74C-306

Active

Cinch Connectivity Solutions Trompeter

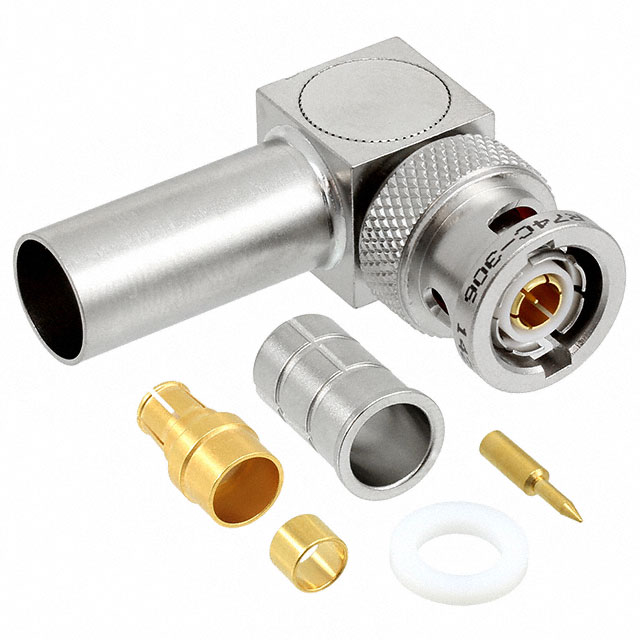

CONN TRB PLUG R/A CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TRB PLUG R/A CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	PLR74C-306

Body Finish	Nickel
Body Material	Brass
Cable Group	M17/134-00002, TRC-50-2
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Twinaxial/Triaxial, TRB
Connector Type	Plug, Male Pin (Concentric)
Contact Termination	Crimp
Fastening Type	Bayonet Lock
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Includes	1 Strain Relief, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	400 V

CONN TRB PLUG R/A CRIMP

Part	Fastening Type	Connector Type	Frequency - Max [Max]	Includes	Center Contact Material	Cable Group	Contact Termination	Mounting Type	Body Finish	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Shield Termination	Impedance	Mating Cycles	Voltage Rating	Number of Ports	Housing Color	Body Material
Cinch Connectivity Solutions Trompeter PLR74C-306	Bayonet Lock	Plug, Male Pin (Concentric)	500 MHz	1 Connector, 1 Strain Relief	Beryllium Copper	M17/134-00002, TRC-50-2	Crimp	Free Hanging (In-Line), Right Angle	Nickel	TRB, Twinaxial/Triaxial	-65 ░C	165 °C	Gold	Crimp	Non-Constant	500	400 V	1	Silver	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRB, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line), Right Angle Crimp
