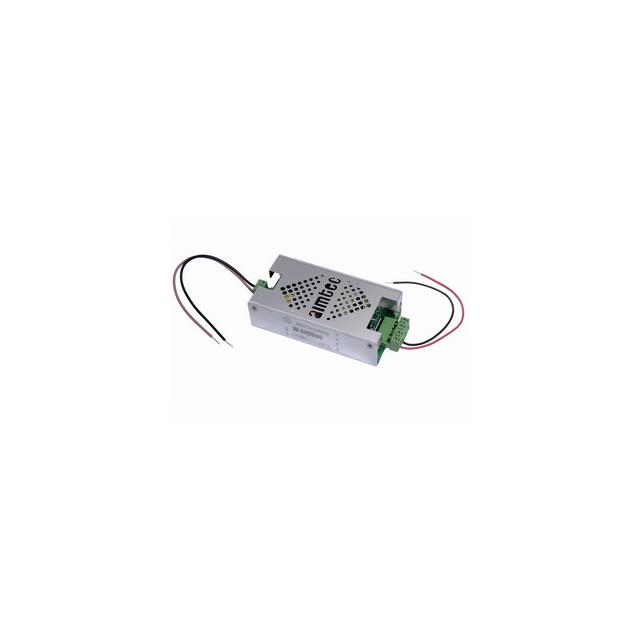

AMEC30-12SMAZ
Activeaimtec
AC/DC CONVERTER 12V 30W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMEC30-12SMAZ
Activeaimtec
AC/DC CONVERTER 12V 30W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMEC30-12SMAZ |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 2.5 A |
| Efficiency | 83 % |
| Features | Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 125 mm |
| Size / Dimension [x] | 4.92 in |
| Size / Dimension [y] | 2.56 " |
| Size / Dimension [y] | 65 mm |
| Size / Dimension [z] | 35 mm |
| Size / Dimension [z] | 1.38 in |
| Standard Number | 60950-1, 60601-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 80.42 | |
| 5 | $ 77.21 | |||
| 10 | $ 74.12 | |||
| 15 | $ 70.41 | |||
| 25 | $ 66.19 | |||
| 50 | $ 64.20 | |||
| 100 | $ 62.92 | |||
| 200 | $ 60.40 | |||
| 500 | $ 57.98 | |||
Description
General part information
AMEC30 Series
Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
