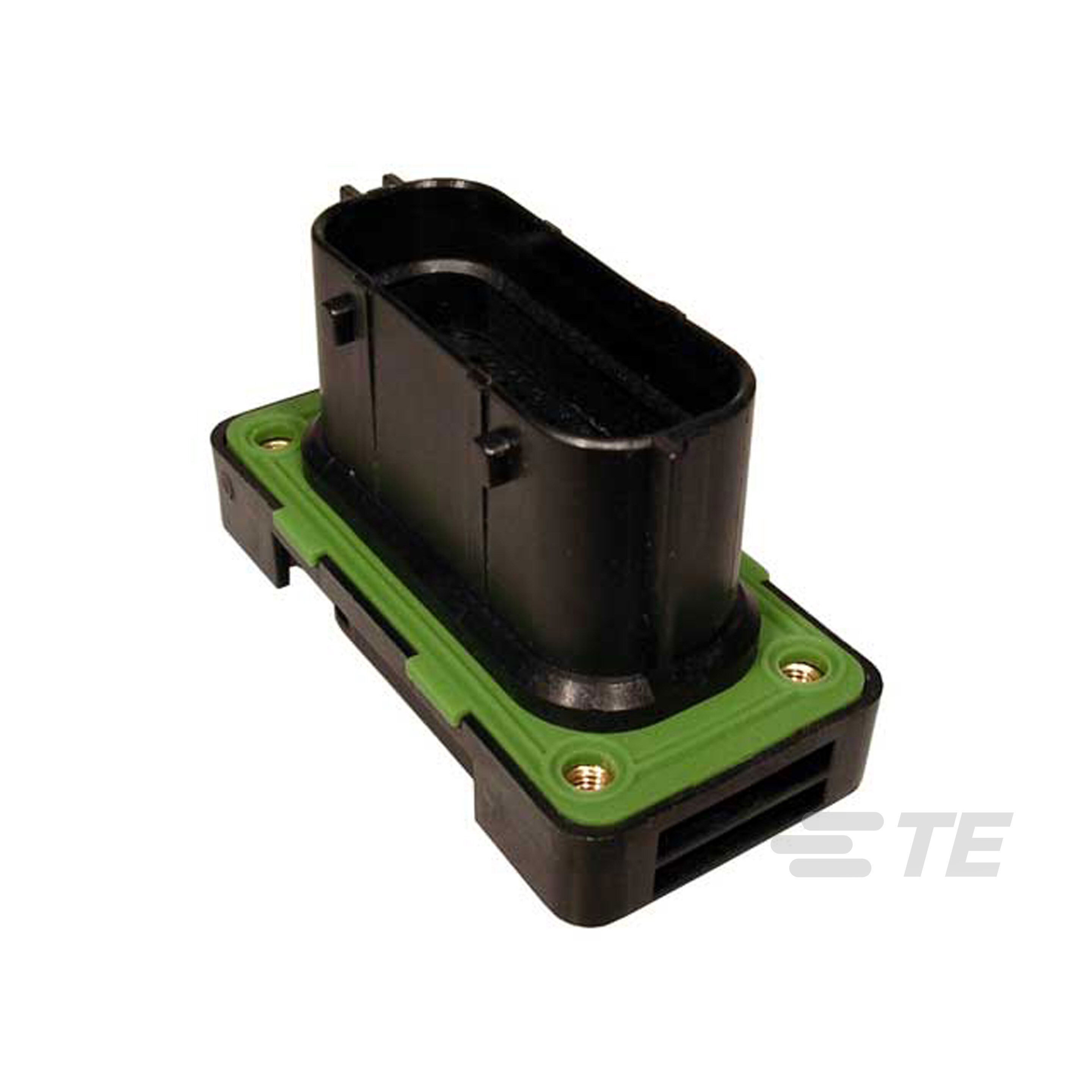

SRK02-MDA-32A-001

Active

TE Connectivity Raychem Cable Protection

REC, 32P, BLK, E, FLANGE, A

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

REC, 32P, BLK, E, FLANGE, A

Technical Specifications

Parameters and characteristics for this part

Specification	SRK02-MDA-32A-001

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Insulation Material	Contact Type	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Color
TE Connectivity Raychem Cable Protection SRK02-MDA-32A-001	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	Crimp	-55 °C	125 °C	Receptacle	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

32 Position Housing, Housing for Male Terminals, Wire-to-Wire, 3.4 mm [.134 in] Centerline, Sealable, Black, Wire & Cable, Power, Panel Mount, STRIKE
