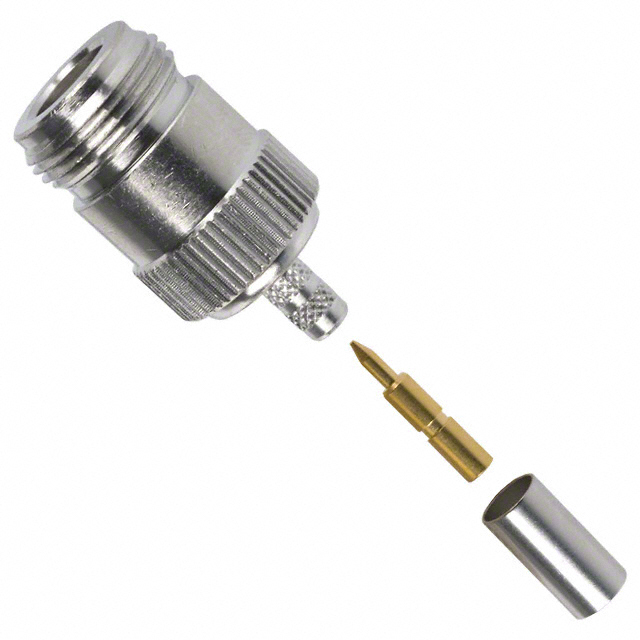

172103RP

Active

Amphenol RF

CONN RP-N JACK STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN RP-N JACK STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	172103RP

Body Finish	White Bronze
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-N Type
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1500 V

Part	Voltage Rating	Connector Style	Shield Termination	Center Contact Plating	Mounting Type	Contact Termination	Frequency - Max [Max]	Includes	Body Finish	Mating Cycles	Impedance	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Insertion Loss	Connector Type	Number of Ports	Body Material	Center Contact Material	Dielectric Material	Housing Color
Amphenol RF 172103RP	1500 V	RP-N Type	Crimp	Gold	Free Hanging (In-Line)	Crimp	11 GHz	1 Connector 1 Contact 1 Ferrule	White Bronze	500	50 Ohms	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	-65 ░C	165 °C	0.15 dB	Jack Male Pin	1	Brass	Brass	Polytetrafluoroethylene (PTFE)	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RP-N Type Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available
