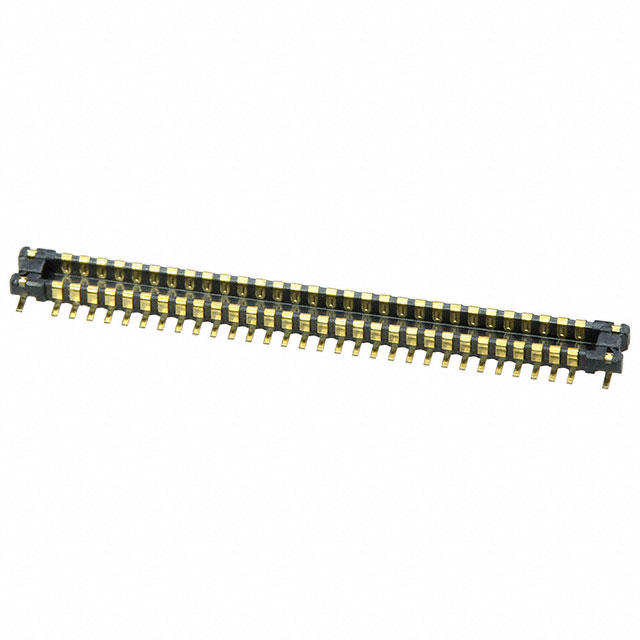

AXE260124A

Obsolete

Panasonic Electric Works

CONN HDR 60POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN HDR 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE260124A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.026 in
Height Above Board	0.65 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Features	Contact Finish	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Number of Positions	Mounting Type	Height Above Board	Height Above Board
Panasonic Electric Works AXE260324D	Header Outer Shroud Contacts	0.016 in	0.4 mm	2	Solder Retention	Gold	1.5 mm	0.053 in	1.35 mm	60	Surface Mount
Panasonic Electric Works AXE260224D	Header Outer Shroud Contacts	0.016 in	0.4 mm	2	Solder Retention	Gold	1 mm	0.033 "	0.84 mm	60	Surface Mount
Panasonic Electric Works AXE260124A	Header Outer Shroud Contacts	0.016 in	0.4 mm	2	Solder Retention	Gold	0.8 mm			60	Surface Mount	0.026 in	0.65 mm
Panasonic Electric Works AXE260124	Header Outer Shroud Contacts	0.016 in	0.4 mm	2	Solder Retention	Gold	0.8 mm			60	Surface Mount	0.026 in	0.65 mm
Panasonic Electric Works AXE260224	Header Outer Shroud Contacts	0.016 in	0.4 mm	2	Solder Retention	Gold	1 mm	0.033 "	0.84 mm	60	Surface Mount
