5-104894-5
ActiveTE Connectivity AMP Connectors

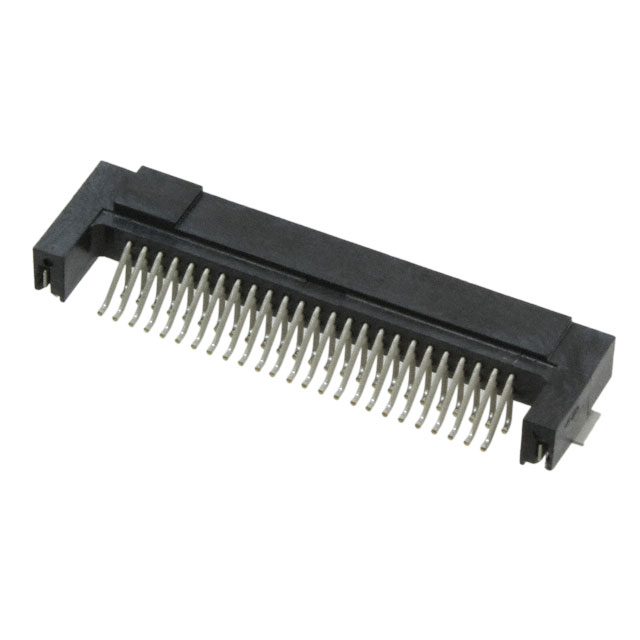

CONN HEADER SMD R/A 50POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-104894-5
ActiveTE Connectivity AMP Connectors
CONN HEADER SMD R/A 50POS 1.27MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-104894-5 | 104894 Series |
|---|---|---|
| Applications | Military, Telecommunications, General Purpose, Automotive, Medical | Military, Telecommunications, General Purpose, Automotive, Medical |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 500 mA | 500 mA |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Board Lock, Solder Retention | Board Lock, Solder Retention |
| Insulation Color | Black | Black |
| Insulation Height | 5.4 mm | 5.4 mm |
| Insulation Height [z] | 0.213 in | 0.213 in |
| Insulation Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Number of Positions | 50 | 10 - 70 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Row Spacing - Mating | 0.05 in | 0.05 in |
| Row Spacing - Mating | 1.27 mm | 1.27 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 8.38 | |
| 12 | $ 7.58 | |||
| 108 | $ 7.06 | |||
104894 Series
CONN HEADER SMD R/A 50POS 1.27MM
| Part | Contact Material | Pitch - Mating | Pitch - Mating | Shrouding | Termination | Number of Rows | Contact Type | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Number of Positions Loaded | Material Flammability Rating | Contact Shape | Number of Positions | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Features | Contact Finish - Mating | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height [z] | Current Rating (Amps) | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104894-5 | Brass | 0.05 in | 1.27 mm | Shrouded - 4 Wall | Solder | 2 | Male Pin | Surface Mount, Right Angle | 150 Áin | 3.81 Ám | Automotive, General Purpose, Medical, Military, Telecommunications | All | UL94 V-0 | Circular | 50 | Header | -65 ░C | 105 ░C | Liquid Crystal Polymer (LCP) | Board Lock, Solder Retention | Gold | Push-Pull | 30 Áin | 0.76 Ám | 5.4 mm | 0.213 in | 500 mA | 0.05 in | 1.27 mm | Black | Tin-Lead |
TE Connectivity AMP Connectors 5-104894-2 | Brass | 0.05 in | 1.27 mm | Shrouded - 4 Wall | Solder | 2 | Male Pin | Surface Mount, Right Angle | 150 Áin | 3.81 Ám | Automotive, General Purpose, Medical, Military, Telecommunications | All | UL94 V-0 | Circular | 20 | Header | -65 ░C | 105 ░C | Liquid Crystal Polymer (LCP) | Board Lock, Solder Retention | Gold | Push-Pull | 30 Áin | 0.76 Ám | 5.4 mm | 0.213 in | 500 mA | 0.05 in | 1.27 mm | Black | Tin |
TE Connectivity AMP Connectors 5-104894-6 | Brass | 0.05 in | 1.27 mm | Shrouded - 4 Wall | Solder | 2 | Male Pin | Surface Mount, Right Angle | 150 Áin | 3.81 Ám | Automotive, General Purpose, Medical, Military, Telecommunications | All | UL94 V-0 | Circular | 60 | Header | -65 ░C | 105 ░C | Liquid Crystal Polymer (LCP) | Board Lock, Solder Retention | Gold | Push-Pull | 30 Áin | 0.76 Ám | 5.4 mm | 0.213 in | 500 mA | 0.05 in | 1.27 mm | Black | Tin |
TE Connectivity AMP Connectors 104894-7 | Brass | 0.05 in | 1.27 mm | Shrouded - 4 Wall | Solder | 2 | Male Pin | Surface Mount, Right Angle | 150 Áin | 3.81 Ám | Automotive, General Purpose, Medical, Military, Telecommunications | All | UL94 V-0 | Circular | 70 | Header | -65 ░C | 105 ░C | Liquid Crystal Polymer (LCP) | Board Lock, Solder Retention | Gold | Push-Pull | 30 Áin | 0.76 Ám | 5.4 mm | 0.213 in | 500 mA | 0.05 in | 1.27 mm | Black | Tin-Lead |
TE Connectivity AMP Connectors 5-104894-1 | Brass | 0.05 in | 1.27 mm | Shrouded - 4 Wall | Solder | 2 | Male Pin | Surface Mount, Right Angle | 150 Áin | 3.81 Ám | Automotive, General Purpose, Medical, Military, Telecommunications | All | UL94 V-0 | Circular | 10 | Header | -65 ░C | 105 ░C | Liquid Crystal Polymer (LCP) | Board Lock, Solder Retention | Gold | Push-Pull | 30 Áin | 0.76 Ám | 5.4 mm | 0.213 in | 500 mA | 0.05 in | 1.27 mm | Black | Tin |
TE Connectivity AMP Connectors 104894-1 | Brass | 0.05 in | 1.27 mm | Shrouded - 4 Wall | Solder | 2 | Male Pin | Surface Mount, Right Angle | 150 Áin | 3.81 Ám | Automotive, General Purpose, Medical, Military, Telecommunications | All | UL94 V-0 | Circular | 10 | Header | -65 ░C | 105 ░C | Liquid Crystal Polymer (LCP) | Board Lock, Solder Retention | Gold | Push-Pull | 30 Áin | 0.76 Ám | 5.4 mm | 0.213 in | 500 mA | 0.05 in | 1.27 mm | Black | Tin-Lead |
TE Connectivity AMP Connectors 104894-2 | Brass | 0.05 in | 1.27 mm | Shrouded - 4 Wall | Solder | 2 | Male Pin | Surface Mount, Right Angle | 150 Áin | 3.81 Ám | Automotive, General Purpose, Medical, Military, Telecommunications | All | UL94 V-0 | Circular | 20 | Header | -65 ░C | 105 ░C | Liquid Crystal Polymer (LCP) | Board Lock, Solder Retention | Gold | Push-Pull | 30 Áin | 0.76 Ám | 5.4 mm | 0.213 in | 500 mA | 0.05 in | 1.27 mm | Black | Tin-Lead |
TE Connectivity AMP Connectors 5-104894-5 | Brass | 0.05 in | 1.27 mm | Shrouded - 4 Wall | Solder | 2 | Male Pin | Surface Mount, Right Angle | 150 Áin | 3.81 Ám | Automotive, General Purpose, Medical, Military, Telecommunications | All | UL94 V-0 | Circular | 50 | Header | -65 ░C | 105 ░C | Liquid Crystal Polymer (LCP) | Board Lock, Solder Retention | Gold | Push-Pull | 30 Áin | 0.76 Ám | 5.4 mm | 0.213 in | 500 mA | 0.05 in | 1.27 mm | Black | Tin |
Description
General part information
104894 Series
Connector Header Surface Mount, Right Angle 50 position 0.050" (1.27mm)
Documents
Technical documentation and resources
