ADO300-48S3V3B-6L

Active

ARTESYN / Advanced Energy

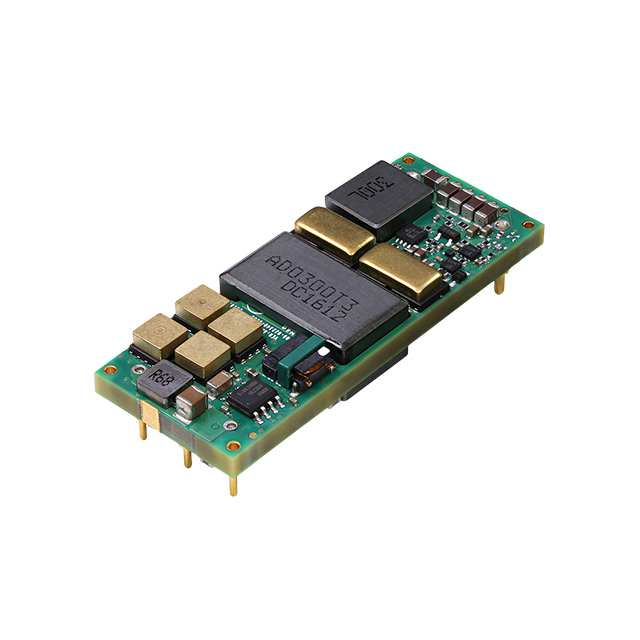

DC DC CONVERTER 3.3V 198W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDigital DC-DC Power Module Brochure ADO300-48S3V3 CE Cert

ADO300-48S3V3B-6L

Active

ARTESYN / Advanced Energy

DC DC CONVERTER 3.3V 198W

Deep-Dive with AI

DocumentsDigital DC-DC Power Module Brochure ADO300-48S3V3 CE Cert

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ADO300-48S3V3B-6L	ADO300 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active High, Enable, Active Low
Current - Output (Max) [Max]	60 A	26 - 60 A
Efficiency	93 %	93 - 95.2 %
Features	OVP, OCP, OTP, Remote On/Off	OVP, OCP, OTP, Remote On/Off
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Eighth Brick	Eighth Brick
Power (Watts)	198 W	198 - 306 W
Size / Dimension	-	23.2 mm
Size / Dimension	-	11.2 mm
Size / Dimension [x]	2.31 in	2.31 in
Size / Dimension [x]	58.7 mm	58.7 mm
Size / Dimension [y]	23.2 mm	23.2 mm
Size / Dimension [y]	0.91 in	0.91 in
Size / Dimension [z]	13.5 mm	13.5 mm
Size / Dimension [z]	0.53 "	0.44 - 0.53 "
Supplier Device Package	Eighth Brick	Eighth Brick
Type	Isolated Module, Digital	Isolated Module, Digital
Voltage - Input (Max) [Max]	75 V	75 V
Voltage - Input (Min) [Min]	36 V	36 V
Voltage - Isolation	1.5 kV	1.5 kV
Voltage - Output 1	3.3 V	3.3 - 11.77 V

ADO300 Series

DC DC CONVERTER 5V 300W

Part	Supplier Device Package	Power (Watts)	Efficiency	Applications	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Isolation	Package / Case	Type	Mounting Type	Control Features	Current - Output (Max) [Max]	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]
ARTESYN / Advanced Energy ADO300-48S05PB-6L	Eighth Brick	300 W	94.6 %	ITE (Commercial)	36 V	1	75 V	1.5 kV	Eighth Brick	Isolated Module, Digital	Through Hole	Active High, Enable	60 A	OCP, OTP, OVP, Remote On/Off	23.2 mm	2.31 in	0.91 in	13.5 mm	0.53 "	58.7 mm	85 °C	-40 °C	5 V
ARTESYN / Advanced Energy ADO300-48S12B-6L	Eighth Brick	306 W	95.2 %	ITE (Commercial)	36 V	1	75 V	1.5 kV	Eighth Brick	Isolated Module, Digital	Through Hole	Active Low, Enable	26 A	OCP, OTP, OVP, Remote On/Off	23.2 mm	2.31 in	0.91 in	13.5 mm	0.53 "	58.7 mm	85 °C	-40 °C	11.77 V
ARTESYN / Advanced Energy ADO300-48S05-6L	Eighth Brick	300 W	94.6 %	ITE (Commercial)	36 V	1	75 V	1.5 kV	Eighth Brick	Isolated Module, Digital	Through Hole	Active Low, Enable	60 A	OCP, OTP, OVP, Remote On/Off		2.31 in	0.91 in		0.44 "	58.7 mm	85 °C	-40 °C	5 V	23.2 mm	11.2 mm
ARTESYN / Advanced Energy ADO300-48S3V3B-6L	Eighth Brick	198 W	93 %	ITE (Commercial)	36 V	1	75 V	1.5 kV	Eighth Brick	Isolated Module, Digital	Through Hole	Active Low, Enable	60 A	OCP, OTP, OVP, Remote On/Off	23.2 mm	2.31 in	0.91 in	13.5 mm	0.53 "	58.7 mm	85 °C	-40 °C	3.3 V
ARTESYN / Advanced Energy ADO300-48S12-6LI	Eighth Brick	306 W	95.2 %	ITE (Commercial)	36 V	1	75 V	1.5 kV	Eighth Brick	Isolated Module, Digital	Through Hole	Active Low, Enable	26 A	OCP, OTP, OVP, Remote On/Off		2.31 in	0.91 in		0.44 "	58.7 mm	85 °C	-40 °C	11.77 V	23.2 mm	11.2 mm
ARTESYN / Advanced Energy ADO300-48S05B-6L	Eighth Brick	300 W	94.6 %	ITE (Commercial)	36 V	1	75 V	1.5 kV	Eighth Brick	Isolated Module, Digital	Through Hole	Active Low, Enable	60 A	OCP, OTP, OVP, Remote On/Off	23.2 mm	2.31 in	0.91 in	13.5 mm	0.53 "	58.7 mm	85 °C	-40 °C	5 V
ARTESYN / Advanced Energy ADO300-48S12-6L	Eighth Brick	306 W	95.2 %	ITE (Commercial)	36 V	1	75 V	1.5 kV	Eighth Brick	Isolated Module, Digital	Through Hole	Active Low, Enable	26 A	OCP, OTP, OVP, Remote On/Off		2.31 in	0.91 in		0.44 "	58.7 mm	85 °C	-40 °C	11.77 V	23.2 mm	11.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 80.13
		5	$ 79.49
		10	$ 78.85
		25	$ 73.77
		40	$ 71.22

Description

General part information

ADO300 Series

Isolated Module, Digital DC DC Converter 1 Output 3.3V 60A 36V - 75V Input

Documents

Technical documentation and resources

Digital DC-DC Power Module Brochure

Datasheet
