12226-8200-00PL
Active3M
JE150323317 12226-8200-00PL=26/SDR/BDMT/RA/NL/8AU
Deep-Dive with AI
Search across all available documentation for this part.
12226-8200-00PL
Active3M
JE150323317 12226-8200-00PL=26/SDR/BDMT/RA/NL/8AU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 12226-8200-00PL | 12226 Series |
|---|---|---|
| Connector Style | Outer Shroud Contacts | Outer Shroud Contacts |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 8 çin | 8 - 30 Áin |
| Contact Finish Thickness | 0.203 çm | 0.203 - 0.76 Ám |
| Features | - | Shielded, Board Lock, Board Guide |
| Flange Feature | M2 | M2, Housing/Shell |
| Flange Feature | - | 2.6 M |
| Mounting Type | Surface Mount, Right Angle | Through Hole, Panel Mount, Surface Mount, Right Angle, Right Angle |
| Number of Positions | 26 | 26 |
| Number of Rows | 2 | 2 |
| Termination | Solder | Solder |
12226 Series
CONN SHRUNK DELTA RIBBON RCP 26 POS 0.8MM SOLDER ST THRU-HOLE 26 TERMINAL 1 PORT BOX
| Part | Contact Finish | Mounting Type | Number of Positions | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Connector Style | Number of Rows | Termination | Features | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | Panel Mount, Through Hole | 26 | Receptacle | 0.76 Ám | 30 Áin | M2 | Outer Shroud Contacts | 2 | Solder | Board Lock, Shielded | ||
Gold | Surface Mount, Right Angle | 26 | Receptacle | 0.203 çm | 8 çin | M2 | Outer Shroud Contacts | 2 | Solder | |||
Gold | Panel Mount, Right Angle, Through Hole | 26 | Receptacle | 0.76 Ám | 30 Áin | M2 | Outer Shroud Contacts | 2 | Solder | Board Lock, Shielded | ||
Gold | Surface Mount, Right Angle | 26 | Receptacle | 0.203 çm | 8 çin | M2 | Outer Shroud Contacts | 2 | Solder | Board Guide, Shielded | ||
Gold | Panel Mount, Right Angle, Through Hole | 26 | Receptacle | 0.76 Ám | 30 Áin | Housing/Shell | Outer Shroud Contacts | 2 | Solder | Board Lock, Shielded | 2.6 M | |
Gold | Panel Mount, Through Hole | 26 | Receptacle | 0.203 çm | 8 çin | M2 | Outer Shroud Contacts | 2 | Solder | Board Lock, Shielded | ||
Gold | Through Hole | 26 | Receptacle | 0.76 Ám | 30 Áin | Outer Shroud Contacts | 2 | Solder | Shielded | |||
Gold | Surface Mount, Right Angle | 26 | Receptacle | 0.76 Ám | 30 Áin | M2 | Outer Shroud Contacts | 2 | Solder | Board Guide, Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
12226 Series

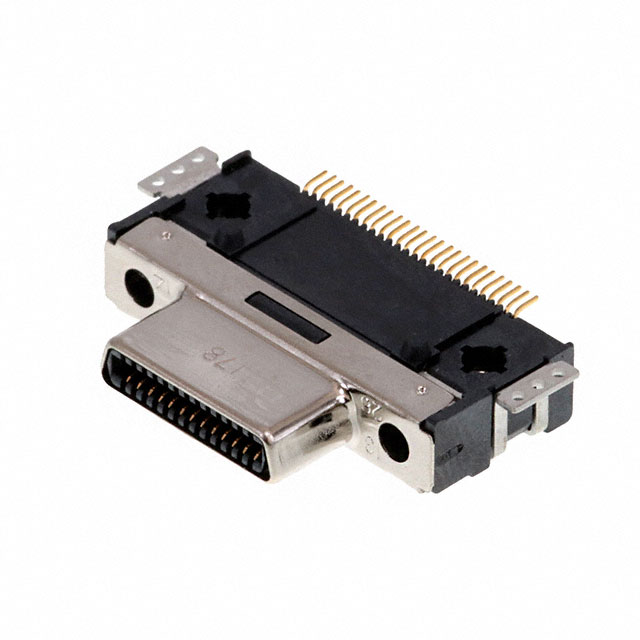

26 Position Receptacle Connector Surface Mount, Right Angle Solder
