I/O CONNECTOR, 26 CONTACTS, RECEPTACLE, SDR, SURFACE MOUNT, 122 SERIES, PCB MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

Documents3D Product Image EN Datasheet

12226-8250-00FR

Active

I/O CONNECTOR, 26 CONTACTS, RECEPTACLE, SDR, SURFACE MOUNT, 122 SERIES, PCB MOUNT

Deep-Dive with AI

Documents3D Product Image EN Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 15.67
		10	$ 13.32
		25	$ 12.48
		50	$ 11.89
		100	$ 11.32
		300	$ 10.48
		500	$ 10.11
		1000	$ 9.62
Newark	Each	1	$ 20.91
		10	$ 18.98
		25	$ 18.51
		50	$ 17.12
		100	$ 16.19
		250	$ 14.72
		500	$ 13.79
		1000	$ 12.71

Description

General part information

12226 Series

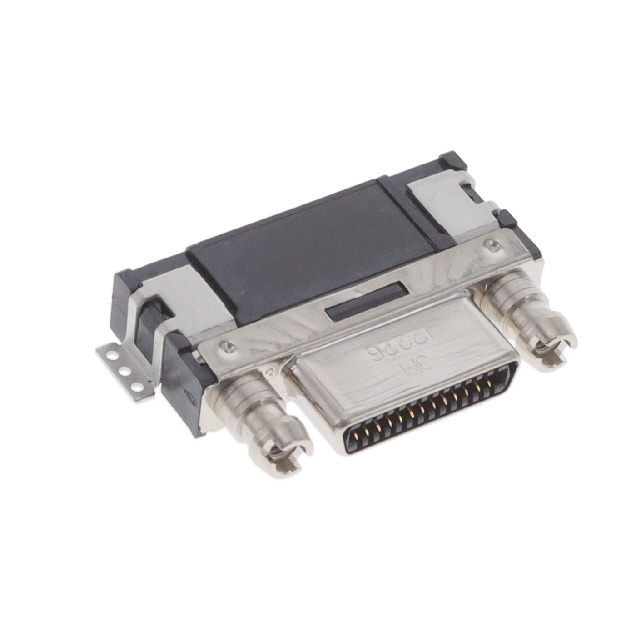

The 12226-8250-00FR is a 26-way 0.80mm shielded surface mount Right Angle Receptacle with gold-plated copper alloy contact, solder termination and PCB mounting. This 122 series connector is high temperature nylon insulated, wiper on wiper contact for reliable repetitive mating.

Documents

Technical documentation and resources

3D Product Image EN

Datasheet

Specification	12226-8250-00FR	12226 Series

Connector Style	Outer Shroud Contacts	Outer Shroud Contacts
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.203 - 0.76 Ám
Contact Finish Thickness	30 Áin	8 - 30 Áin
Features	Shielded, Board Guide	Shielded, Board Lock, Board Guide
Flange Feature	M2	M2, Housing/Shell
Flange Feature	-	2.6 M
Mounting Type	Surface Mount, Right Angle	Through Hole, Panel Mount, Surface Mount, Right Angle, Right Angle
Number of Positions	26	26
Number of Rows	2	2
Termination	Solder	Solder

Part	Contact Finish	Mounting Type	Number of Positions	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Connector Style	Number of Rows	Termination	Features	Flange Feature
3M 12226-1150-00FR	Gold	Panel Mount, Through Hole	26	Receptacle	0.76 Ám	30 Áin	M2	Outer Shroud Contacts	2	Solder	Board Lock, Shielded
3M 12226-8200-00PL	Gold	Surface Mount, Right Angle	26	Receptacle	0.203 çm	8 çin	M2	Outer Shroud Contacts	2	Solder
3M 12226-5150-00FR	Gold	Panel Mount, Right Angle, Through Hole	26	Receptacle	0.76 Ám	30 Áin	M2	Outer Shroud Contacts	2	Solder	Board Lock, Shielded
3M 12226-8250-00PL	Gold	Surface Mount, Right Angle	26	Receptacle	0.203 çm	8 çin	M2	Outer Shroud Contacts	2	Solder	Board Guide, Shielded
3M 12226-5110-00FR	Gold	Panel Mount, Right Angle, Through Hole	26	Receptacle	0.76 Ám	30 Áin	Housing/Shell	Outer Shroud Contacts	2	Solder	Board Lock, Shielded	2.6 M
3M 12226-1150-00PL	Gold	Panel Mount, Through Hole	26	Receptacle	0.203 çm	8 çin	M2	Outer Shroud Contacts	2	Solder	Board Lock, Shielded
3M 12226-1110-00FR	Gold	Through Hole	26	Receptacle	0.76 Ám	30 Áin		Outer Shroud Contacts	2	Solder	Shielded
3M 12226-8250-00FR	Gold	Surface Mount, Right Angle	26	Receptacle	0.76 Ám	30 Áin	M2	Outer Shroud Contacts	2	Solder	Board Guide, Shielded
