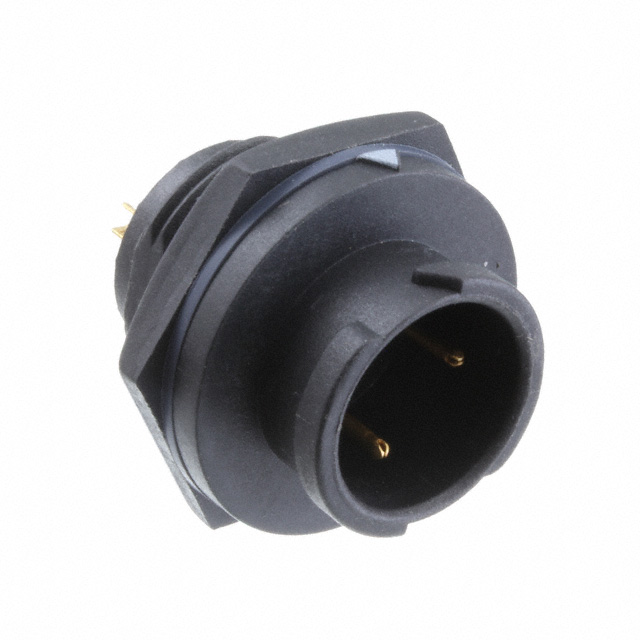

BD-03RMMS-QC8001

Active

Amphenol LTW

X-LOK, STANDARD SIZE, PLASTIC, 5A, 03 PINS, MALE CONNECTOR, MALE CONTACT, CIRCULAR, PUSH LOCK, SOLDER, RECEPTACLE, IP68 ROHS COM

Search across all available documentation for this part.

Active

Amphenol LTW

X-LOK, STANDARD SIZE, PLASTIC, 5A, 03 PINS, MALE CONNECTOR, MALE CONTACT, CIRCULAR, PUSH LOCK, SOLDER, RECEPTACLE, IP68 ROHS COM

Technical Specifications

Parameters and characteristics for this part

Specification	BD-03RMMS-QC8001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	300 VAC

Part	Voltage Rating	Contact Material	Mounting Feature	Orientation	Insert Material	Contact Finish - Mating	Material Flammability Rating	Number of Positions	Fastening Type	Color	Connector Type	Shell Material	Current Rating (Amps)	Shielding	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Shell Size - Insert
Amphenol LTW BD-03RMMS-QC8001	300 VAC	Copper Alloy	Bulkhead - Rear Side Nut	Keyed	Polyamide (PA) Nylon Glass Filled	Gold	UL94 V-0	3	Push-Pull	Black	Male Pins Receptacle	Glass Filled Nylon Polyamide (PA)	5 A	Unshielded	IP68 - Dust Tight Waterproof	-40 °C	105 ░C	Plastic	B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 (Data) Position Circular Connector Receptacle, Male Pins Solder Cup
