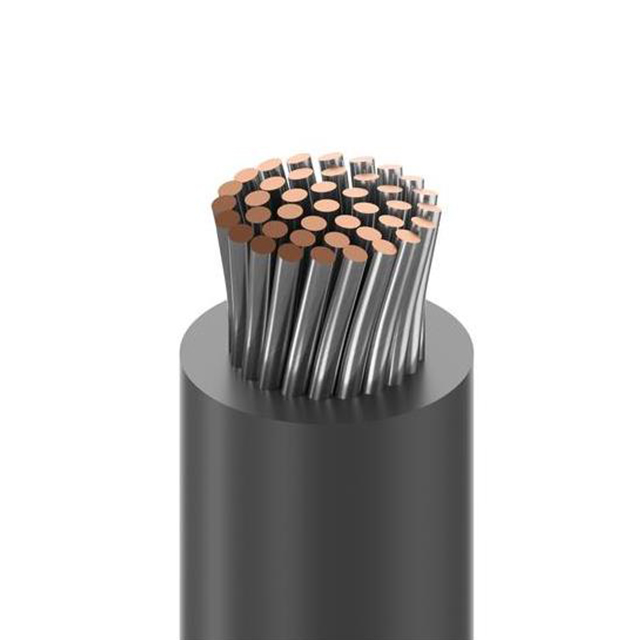

8916 0054000

Active

Belden Inc.

HOOK-UP STRND 14AWG GREEN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCabling Solutions for Industrial Applications Datasheet

8916 0054000

Active

Belden Inc.

HOOK-UP STRND 14AWG GREEN

Deep-Dive with AI

DocumentsCabling Solutions for Industrial Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8916 0054000

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	41
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.138 in
Jacket (Insulation) Diameter [diameter]	3.5 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.84 mm
Jacket (Insulation) Thickness	0.033 in
Jacket Color	Green
Length [x]	1219.2 m
Length [x]	4000 ft
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Voltage	600 V
Wire Gauge	13.5 AWG

8916 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Wire Gauge	Voltage	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 8916 013500	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	0.84 mm	0.033 in	500 '	152.4 m	13.5 AWG	600 V	Hook-Up	0.138 in	3.5 mm	Blue	Copper Tinned	41	30 AWG
Belden Inc. 8916 008500	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	0.84 mm	0.033 in	500 '	152.4 m	13.5 AWG	600 V	Hook-Up	0.138 in	3.5 mm	Gray	Copper Tinned	41	30 AWG
Belden Inc. 8916 0104000	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	0.84 mm	0.033 in	4000 ft	1219.2 m	13.5 AWG	600 V	Hook-Up	0.138 in	3.5 mm	Black	Copper Tinned	41	30 AWG
Belden Inc. 8916 003500	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	0.84 mm	0.033 in	500 '	152.4 m	13.5 AWG	600 V	Hook-Up	0.138 in	3.5 mm	Orange	Copper Tinned	41	30 AWG
Belden Inc. 8916 009100	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	0.84 mm	0.033 in	100 ft	30.5 m	13.5 AWG	600 V	Hook-Up	0.138 in	3.5 mm		Copper Tinned	41	30 AWG
Belden Inc. 8916 010100	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	0.84 mm	0.033 in	100 ft	30.5 m	13.5 AWG	600 V	Hook-Up	0.138 in	3.5 mm	Black	Copper Tinned	41	30 AWG
Belden Inc. 8916 003100	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	0.84 mm	0.033 in	100 ft	30.5 m	13.5 AWG	600 V	Hook-Up	0.138 in	3.5 mm	Orange	Copper Tinned	41	30 AWG
Belden Inc. 8916 0054000	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	0.84 mm	0.033 in	4000 ft	1219.2 m	13.5 AWG	600 V	Hook-Up	0.138 in	3.5 mm	Green	Copper Tinned	41	30 AWG
Belden Inc. 8916 010500	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	0.84 mm	0.033 in	500 '	152.4 m	13.5 AWG	600 V	Hook-Up	0.138 in	3.5 mm	Black	Copper Tinned	41	30 AWG
Belden Inc. 8916 013100	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	0.84 mm	0.033 in	100 ft	30.5 m	13.5 AWG	600 V	Hook-Up	0.138 in	3.5 mm	Blue	Copper Tinned	41	30 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	4000	$ 2.17

Description

General part information

8916 Series

14 AWG Hook-Up Wire 41/30 Green 600V 4000' (1219.2m)

Documents

Technical documentation and resources

Cabling Solutions for Industrial Applications

Datasheet
