PTB0143-2010BPA103
ActiveBourns Inc.

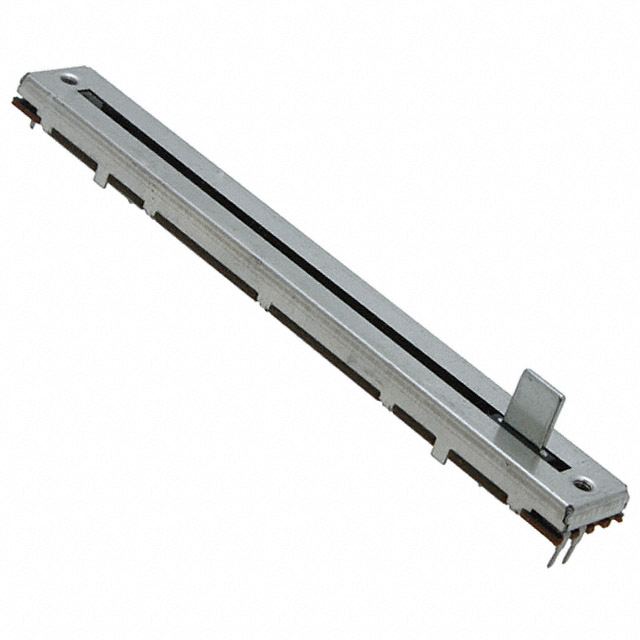

SLIDE POT 10KOHM 0.25W TOP 100MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PTB0143-2010BPA103
ActiveBourns Inc.
SLIDE POT 10KOHM 0.25W TOP 100MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PTB0143-2010BPA103 |
|---|---|
| Adjustment Type | Top |
| Fader Type | Standard |
| Mounting Type | Through Hole |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance | 10000 Ohms |
| Size / Dimension [x] | 128 mm |
| Size / Dimension [x] | 5.039 " |
| Size / Dimension [y] | 16 mm |
| Size / Dimension [y] | 0.63 in |
| Size / Dimension [z] | 0.315 " |
| Size / Dimension [z] | 8 mm |
| Tolerance | 20 % |
| Travel Range | 100 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.54 | |
| 10 | $ 6.00 | |||
| 25 | $ 5.34 | |||
| 40 | $ 5.02 | |||
| 100 | $ 4.58 | |||
| 300 | $ 3.71 | |||
| 500 | $ 3.49 | |||
| 1000 | $ 3.27 | |||
Description
General part information
PTB0143 Series
10 kOhms 0.25W, 1/4W Through Hole Slide Potentiometer Top Adjustment Type
