HTMS-133-02-T-S

Active

Samtec Inc.

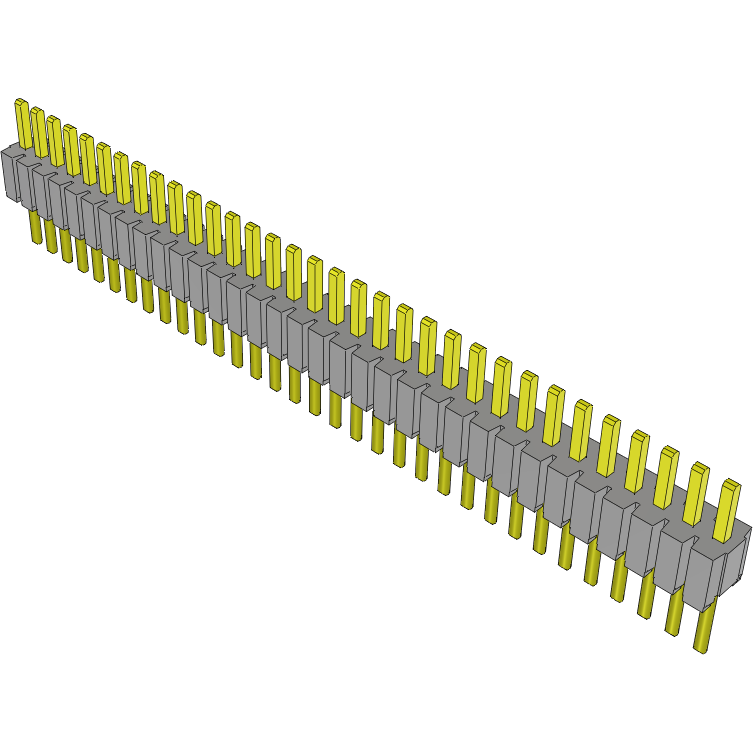

CONN UNSHROUDED HEADER HDR 33 POS 1.27MM SOLDER ST TOP ENTRY THRU-HOLE TUBE

Search across all available documentation for this part.

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 33 POS 1.27MM SOLDER ST TOP ENTRY THRU-HOLE TUBE

Technical Specifications

Parameters and characteristics for this part

Specification	HTMS-133-02-T-S

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.1 in
Contact Length - Mating	2.54 mm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	33
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder

Part	Contact Finish - Post	Fastening Type	Contact Material	Number of Positions	Contact Shape	Number of Rows	Material Flammability Rating	Mounting Type	Contact Type	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Termination	Insulation Color	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Insulation Material
Samtec Inc. HTMS-133-02-T-S	Tin	Push-Pull	Phosphor Bronze	33	Square	1	UL94 V-0	Through Hole	Male Pin	All	105 ░C	-55 °C	Unshrouded	Solder	Black	0.1 in	2.54 mm	0.1 in	2.54 mm	0.05 in	1.27 mm	5 A	0.12 in	3.05 mm	Header	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 2.97
		50	$ 2.42
Digikey	Tube	13	$ 3.15

General part information

Connector Header Through Hole 33 position 0.050" (1.27mm)
