JF15RP3CC - JF15RP3CC

JF15RP3CC

Active
NKK Switches

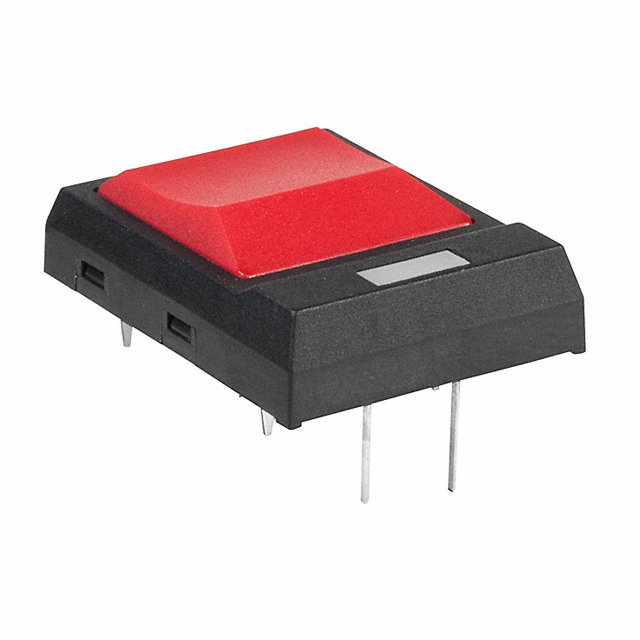

TACTILE SWITCH, JF SERIES, TOP ACTUATED, THROUGH HOLE, SQUARE BUTTON, 200 GF, 50MA AT 24VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
JF15RP3CC - JF15RP3CC

JF15RP3CC

Active
NKK Switches

TACTILE SWITCH, JF SERIES, TOP ACTUATED, THROUGH HOLE, SQUARE BUTTON, 200 GF, 50MA AT 24VDC

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationJF15RP3CC
Actuator Height off PCB, Vertical6.78 mm
Actuator MaterialNylon, Polyamide (PA)
Actuator OrientationTop Actuated
Actuator TypeSquare Button
CircuitSPST-NO
Contact Rating @ Voltage0.05 A, 24 VDC
FeaturesProcess Sealed
IlluminationIlluminated
Illumination Type, ColorRed, LED
Illumination Voltage (Nominal)2 VDC
Mechanical Life500000 Cycles
Mounting TypeThrough Hole
Operating Force200 gf
Operating Temperature [Max]70 °C
Operating Temperature [Min]-25 °C
Outline [x]22.8 mm
Outline [y]17.7 mm
Switch FunctionOff-Mom
Switch Travel0.8 mm
Termination StylePC Pin
