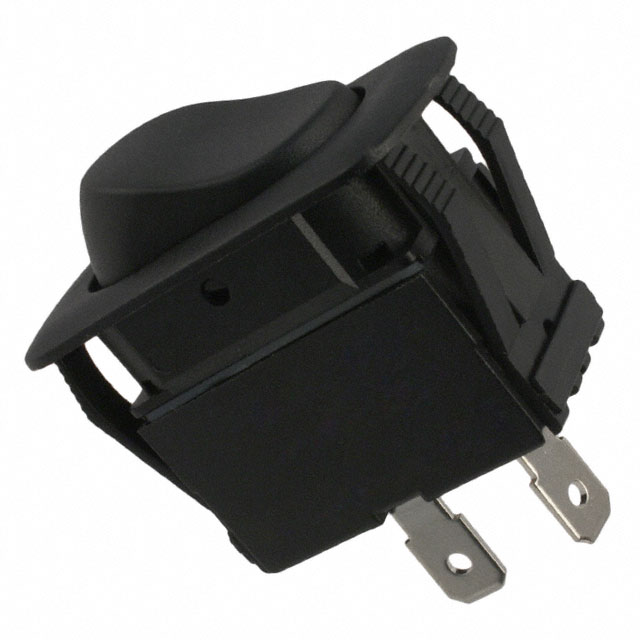

GRB263A0BBNN
ActiveCW Industries
SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
GRB263A0BBNN
ActiveCW Industries
SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRB263A0BBNN |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | ENEC, cULus |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 21 A, 16 A |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 36.6 mm |
| Panel Cutout Dimensions [y] | 21.2 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 14 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.17 | |
| 10 | $ 2.74 | |||
| 25 | $ 2.58 | |||
| 50 | $ 2.47 | |||
| 100 | $ 2.36 | |||
| 250 | $ 2.23 | |||
Description
General part information
GRB263A Series
Rocker Switch SPST 16A (AC), 21A (DC) 125 V Panel Mount, Snap-In
