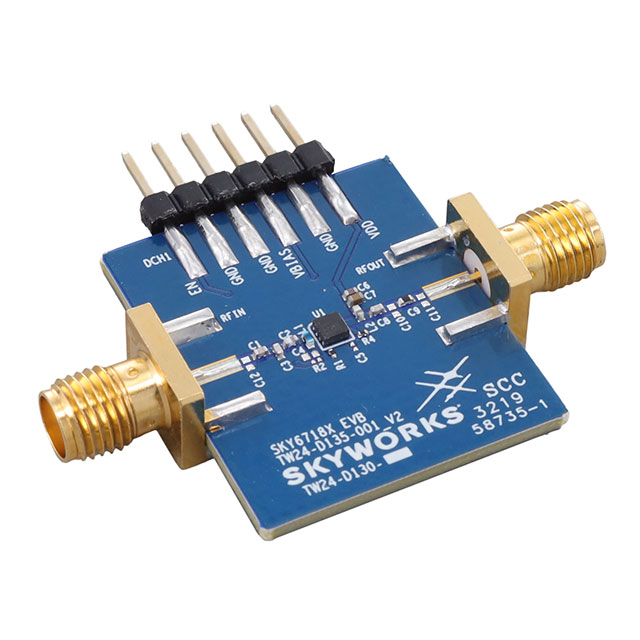

Specification	SKY67189-396EK1

Contents	Board
For Use With/Related Products	SKY67189-396LF
Frequency (Max)	6 GHz
Frequency (Min)	400 MHz
Supplied Contents	Board(s)
Type	Amplifier
Utilized IC / Part	SKY67189-396LF

SKY67189 Series

Part	Mounting Type	Package Length	Package Name	Package Width	Package / Case	Frequency (Min)	Frequency (Max)	Test Frequency	Gain	Current - Supply	Voltage - Supply	Noise Figure	P1dB	RF Type	Supplied Contents	For Use With/Related Products	Utilized IC / Part	Type	Contents
Skyworks Solutions Inc. SKY67189-396LF	Surface Mount	2 mm	8-DFN	2 mm	8-WFDFN Exposed Pad	400 MHz	6 GHz	5 GHz	17.3 dB	52 mA	5 VDC	0.75 dB	19 dBm	2G 3G 4G 5G
Skyworks Solutions Inc. SKY67189-396EK1						400 MHz	6 GHz								Board(s)	SKY67189-396LF	SKY67189-396LF	Amplifier	Board

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
