UPL220-009

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 75 OHM CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN BNC PLUG STR 75 OHM CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

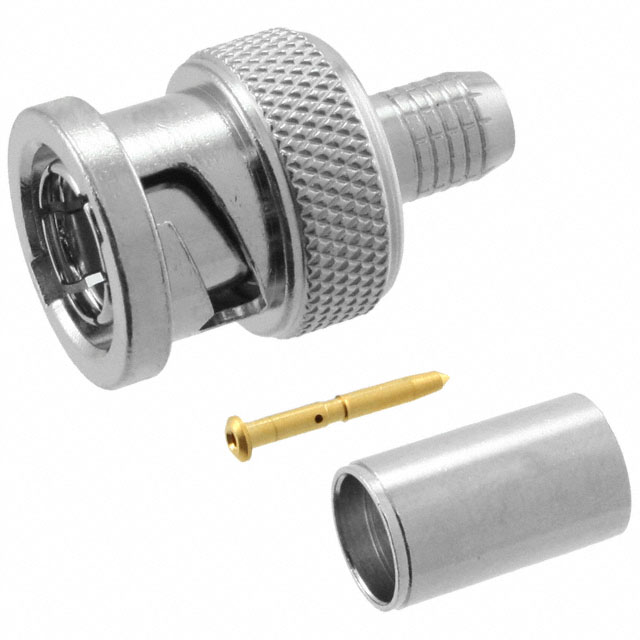

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	UPL220-009	UPL220 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	Belden 8218, Essex 21-597, YR23023	187, RG-179, Belden 8218, Essex 21-597, YR23023
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	75 Ohms	75 Ohms
Includes	-	1 Bushing, 1 Connector, 1 Sleeve, 1 Contact
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 V

CONN BNC PLUG STR 75 OHM CRIMP

Part	Dielectric Material	Fastening Type	Frequency - Max [Max]	Shield Termination	Center Contact Material	Number of Ports	Impedance	Cable Group	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Housing Color	Body Finish	Connector Type	Includes	Contact Termination	Voltage Rating	Mounting Type	Body Material
Cinch Connectivity Solutions Trompeter UPL220-004	Polytetrafluoroethylene (PTFE)	Bayonet Lock	4 GHz	Crimp	Brass	1	75 Ohms	187, RG-179	BNC	-65 ░C	165 °C	Gold	Silver	Nickel	Male Pin, Plug	1 Bushing, 1 Connector, 1 Contact, 1 Sleeve	Crimp	500 V	Free Hanging (In-Line)	Brass
Cinch Connectivity Solutions Trompeter UPL220-009	Polytetrafluoroethylene (PTFE)	Bayonet Lock	4 GHz	Crimp	Brass	1	75 Ohms	Belden 8218, Essex 21-597, YR23023	BNC	-65 ░C	165 °C	Gold	Silver	Nickel	Male Pin, Plug		Crimp	500 V	Free Hanging (In-Line)	Brass
