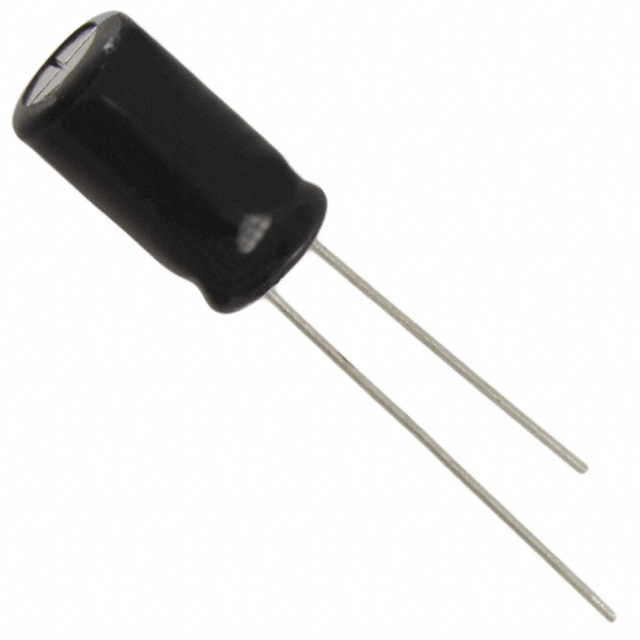

ESW227M035AG4AA

Active

KEMET

CAP ALUM 220UF 20% 35V RADIAL TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 220UF 20% 35V RADIAL TH

Technical Specifications

Parameters and characteristics for this part

Specification	ESW227M035AG4AA

Applications	General Purpose
Capacitance	220 µF
ESR (Equivalent Series Resistance)	87 mOhm
Height - Seated (Max) [Max] [z]	17 mm
Height - Seated (Max) [Max] [z]	0.669 in
Impedance	85 mOhms
Lead Spacing	3.5 mm
Lead Spacing	0.138 in
Lifetime @ Temp.	4000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	840 mA
Ripple Current @ Low Frequency	420 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Tolerance	20 %
Voltage - Rated	35 V

Part	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Tolerance	Impedance	Capacitance	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Polarization	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ESW227M050AH2AA	5 mm	0.197 in	-40 °C	105 ░C	General Purpose	20 %	119 mOhms	220 µF	Through Hole	10 mm	0.394 in	5000 Hrs	850 mA	425 mA	119 mOhm	17 mm	0.669 in	50 VDC	Polar	Radial Can
KEMET ESW227M025AG3AA	3.5 mm	0.138 in	-40 °C	105 ░C	General Purpose	20 %	117 mOhms	220 µF	Through Hole	8 mm	0.315 "	4000 Hrs	640 mA	320 mA	130 mOhm			25 VDC	Polar	Radial Can	0.492 in	12.5 mm
KEMET ESW227M035AG4AA	3.5 mm	0.138 in	-40 °C	105 ░C	General Purpose	20 %	85 mOhms	220 µF	Through Hole	8 mm	0.315 "	4000 Hrs	840 mA	420 mA	87 mOhm	17 mm	0.669 in	35 V	Polar	Radial Can

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

220 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 87mOhm @ 100kHz 4000 Hrs @ 105°C
