Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TS922EIJT | TS922 Series |
|---|---|---|
| - | - | |
| Amplifier Type | General Purpose | General Purpose |
| Current - Input Bias | 15 nA | 15 nA |
| Current - Output / Channel | 80 mA | 80 mA |
| Current - Supply | 2 mA | 2 mA |
| Gain Bandwidth Product | 4 MHz | 4 MHz |
| Grade | Automotive | Automotive |
| Mounting Type | Surface Mount | Through Hole, Surface Mount |
| Number of Circuits | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Rail-to-Rail | Rail-to-Rail |

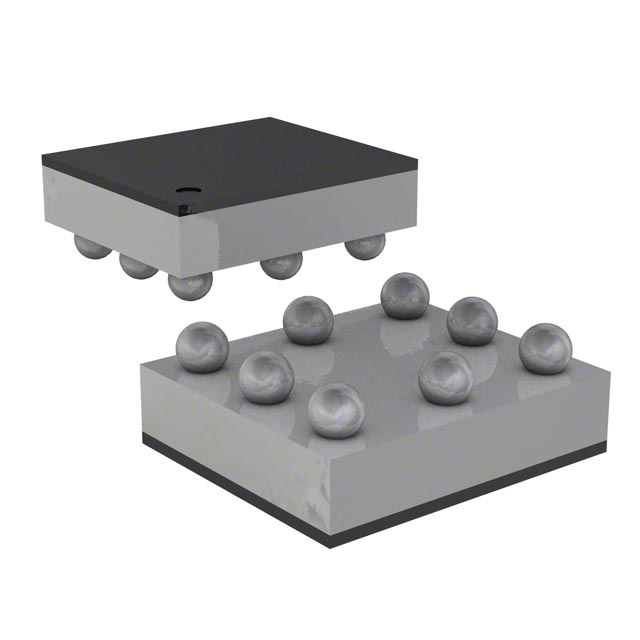

| Package / Case | FCBGA, 8-UFBGA | 8-DIP, 8-SOIC, 8-TSSOP, FCBGA, 8-UFBGA |
| Package / Case | - | 0.3 in |
| Package / Case | - | 7.62 mm |
| Package / Case | - | 3.9 mm |
| Package / Case | - | 0.154 in |
| Package / Case | - | 0.173 " |
| Package / Case | - | 4.4 mm |
| Qualification | AEC-Q100 | AEC-Q100 |
| Slew Rate | 1.3 V/µs | 1.3 V/µs |
| Supplier Device Package | 8-FCBGA (1.6x1.6) | 8-Mini DIP, 8-SOIC, 8-TSSOP, 8-FCBGA (1.6x1.6) |
| Voltage - Input Offset | 1.5 mV | 1.5 - 900 mV |
| Voltage - Supply Span (Max) [Max] | 12 V | 12 V |
| Voltage - Supply Span (Min) [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.69 | |
| 10 | $ 2.42 | |||
| 25 | $ 2.28 | |||
| 100 | $ 1.95 | |||
| 250 | $ 1.83 | |||
| 500 | $ 1.60 | |||
| 1000 | $ 1.32 | |||
| 2500 | $ 1.23 | |||
| Digi-Reel® | 1 | $ 2.69 | ||
| 10 | $ 2.42 | |||
| 25 | $ 2.28 | |||
| 100 | $ 1.95 | |||
| 250 | $ 1.83 | |||
| 500 | $ 1.60 | |||
| 1000 | $ 1.32 | |||
| 2500 | $ 1.23 | |||
| Tape & Reel (TR) | 5000 | $ 1.02 | ||
TS922 Series
IC OPAMP GP 2 CIRCUIT 8MINI DIP
| Part | Qualification | Operating Temperature [Max] | Operating Temperature [Min] | Slew Rate | Voltage - Supply Span (Max) [Max] | Supplier Device Package | Voltage - Supply Span (Min) [Min] | Amplifier Type | Current - Input Bias | Gain Bandwidth Product | Current - Supply | Output Type | Grade | Voltage - Input Offset | Package / Case | Package / Case | Package / Case | Number of Circuits | Current - Output / Channel | Mounting Type | Package / Case [y] | Package / Case [x] | Package / Case [custom] | Package / Case [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TS922IN | AEC-Q100 | 125 °C | -40 °C | 1.3 V/µs | 12 V | 8-Mini DIP | 2.7 V | General Purpose | 15 nA | 4 MHz | 2 mA | Rail-to-Rail | Automotive | 3 mV | 0.3 in | 8-DIP | 7.62 mm | 2 | 80 mA | Through Hole | ||||
STMicroelectronics TS922IDT | ||||||||||||||||||||||||
STMicroelectronics TS922EIJT | ||||||||||||||||||||||||
STMicroelectronics TS922AIN | AEC-Q100 | 125 °C | -40 °C | 1.3 V/µs | 12 V | 8-Mini DIP | 2.7 V | General Purpose | 15 nA | 4 MHz | 2 mA | Rail-to-Rail | Automotive | 900 µV | 0.3 in | 8-DIP | 7.62 mm | 2 | 80 mA | Through Hole | ||||
STMicroelectronics TS922IYDT | ||||||||||||||||||||||||
STMicroelectronics TS922IDT | AEC-Q100 | 125 °C | -40 °C | 1.3 V/µs | 12 V | 8-SOIC | 2.7 V | General Purpose | 15 nA | 4 MHz | 2 mA | Rail-to-Rail | Automotive | 3 mV | 8-SOIC | 2 | 80 mA | Surface Mount | 3.9 mm | 0.154 in | ||||
STMicroelectronics TS922AID | AEC-Q100 | 125 °C | -40 °C | 1.3 V/µs | 12 V | 8-SOIC | 2.7 V | General Purpose | 15 nA | 4 MHz | 2 mA | Rail-to-Rail | Automotive | 900 µV | 8-SOIC | 2 | 80 mA | Surface Mount | 3.9 mm | 0.154 in | ||||
STMicroelectronics TS922IYPT | AEC-Q100 | 125 °C | -40 °C | 1.3 V/µs | 12 V | 8-TSSOP | 2.7 V | General Purpose | 15 nA | 4 MHz | 2 mA | Rail-to-Rail | Automotive | 3 mV | 8-TSSOP | 2 | 80 mA | Surface Mount | 0.173 " | 4.4 mm | ||||
STMicroelectronics TS922IDT | ||||||||||||||||||||||||
STMicroelectronics TS922EIJT | AEC-Q100 | 125 °C | -40 °C | 1.3 V/µs | 12 V | 8-FCBGA (1.6x1.6) | 2.7 V | General Purpose | 15 nA | 4 MHz | 2 mA | Rail-to-Rail | Automotive | 1.5 mV | 8-UFBGA, FCBGA | 2 | 80 mA | Surface Mount | ||||||
STMicroelectronics TS922AIDT | ||||||||||||||||||||||||
STMicroelectronics TS922IYDT | ||||||||||||||||||||||||
STMicroelectronics TS922IYDT | AEC-Q100 | 125 °C | -40 °C | 1.3 V/µs | 12 V | 8-SOIC | 2.7 V | General Purpose | 15 nA | 4 MHz | 2 mA | Rail-to-Rail | Automotive | 3 mV | 8-SOIC | 2 | 80 mA | Surface Mount | 3.9 mm | 0.154 in | ||||
STMicroelectronics TS922IDT | ||||||||||||||||||||||||
STMicroelectronics TS922AIDT | AEC-Q100 | 125 °C | -40 °C | 1.3 V/µs | 12 V | 8-SOIC | 2.7 V | General Purpose | 15 nA | 4 MHz | 2 mA | Rail-to-Rail | Automotive | 900 µV | 8-SOIC | 2 | 80 mA | Surface Mount | 3.9 mm | 0.154 in |
Description
General part information
TS922 Series
TS922 and TS922A devices are rail-to-rail dual BiCMOS operational amplifiers optimized and fully specified for 3 V and 5 V operation. These devices have high output currents which allow low-load impedances to be driven.Very low noise, low distortion, lowRail-to-rail input and outputLow noise: 9 nV/vHzLow distortionHigh output current: 80 mA (able to drive 32 O loads)High-speed: 4 MHz, 1 V/µsOperating from 2.7 to 12 VLow
