3600A/14

Active

3M (TC)

80610796668 3600A/14=14/CAB/RC/RJKT/SH/TP/CSA/BLACK/28STR/300FT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3600A/14

Active

3M (TC)

80610796668 3600A/14=14/CAB/RC/RJKT/SH/TP/CSA/BLACK/28STR/300FT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3600A/14

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.22 in
Jacket (Insulation) Diameter [diameter]	5.59 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.026 in
Jacket (Insulation) Thickness	0.66 mm
Jacket Color	Black
Length	91.4 m
Length	300 ft
Number of Conductors	14
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Communication, Computer, Control
Voltage	30 V
Wire Gauge	28 AWG

3600A Series

Part	Jacket (Insulation) Material	Shield Type	Cable Type	Wire Gauge	Conductor Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Conductor Insulation	Length [x]	Length [x]	Usage	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Features
3M (TC) 3600A/40	Poly-Vinyl Chloride (PVC)	Braid Foil	Multi-Pair	28 AWG	Copper Tinned	Black	7.62 mm	0.3 in	90 % 100 %	40	0.026 in	0.66 mm	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	Communication Computer Control	30 V	36 AWG	7
3M (TC) 3600A/14	Poly-Vinyl Chloride (PVC)	Braid Foil	Multi-Pair	28 AWG	Copper Tinned	Black	5.59 mm	0.22 in	90 % 100 %	14	0.026 in	0.66 mm	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)			Communication Computer Control	30 V	36 AWG	7	91.4 m	300 ft
3M (TC) 3600A/24SF	Poly-Vinyl Chloride (PVC)	Braid Foil	Multi-Pair	28 AWG	Copper Tinned	Black	6.35 mm	0.25 "	90 % 100 %	24	0.026 in	0.66 mm	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	Communication Computer Control	30 V	36 AWG	7			Splice Free
3M (TC) 3600A/36	Poly-Vinyl Chloride (PVC)	Braid Foil	Multi-Pair	28 AWG	Copper Tinned	Black			90 % 100 %	36	0.026 in	0.66 mm	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	30.5 m	50 ft 100 ft	Communication Computer Control	30 V	36 AWG	7	1.52 m 15.24 m	5 '
3M (TC) 3600A/80	Poly-Vinyl Chloride (PVC)	Braid Foil	Multi-Pair	28 AWG	Copper Tinned	Black	9.91 mm	0.39 in	90 % 100 %	80	0.026 in	0.66 mm	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	61 m	200 ft	Communication Computer Control	30 V	36 AWG	7
3M (TC) 3600A/20 300	Poly-Vinyl Chloride (PVC)	Braid Foil	Multi-Pair	28 AWG	Copper Tinned	Black	6.1 mm	0.24 in	90 % 100 %	20	0.026 in	0.66 mm	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)			Communication Computer Control	30 V	36 AWG	7	91.4 m	300 ft
3M (TC) 3600A/68	Poly-Vinyl Chloride (PVC)	Braid Foil	Multi-Pair	28 AWG	Copper Tinned	Black	9.14 mm	0.36 "	90 % 100 %	68	0.026 in	0.66 mm	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	Communication Computer Control	30 V	36 AWG	7
3M (TC) 3600A/26	Poly-Vinyl Chloride (PVC)	Braid Foil	Multi-Pair	28 AWG	Copper Tinned	Black	6.35 mm	0.25 "	90 % 100 %	26	0.026 in	0.66 mm	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	Communication Computer Control	30 V	36 AWG	7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	600	$ 1.84
Newark	Spool of 300	1	$ 643.71
		5	$ 622.60
		10	$ 601.50
		25	$ 555.77
		50	$ 524.11

Description

General part information

3600A Series

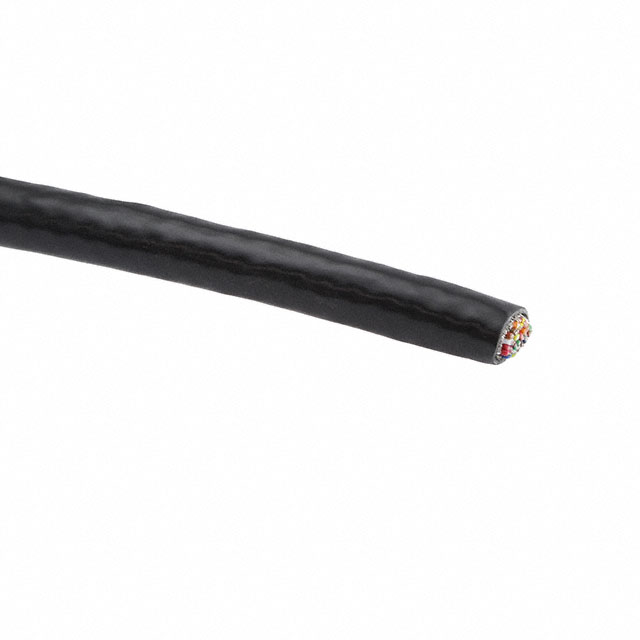

14 (7 Pair Twisted) Conductor Multi-Pair Cable Black 28 AWG Foil, Braid 300.0' (91.4m)

Documents

Technical documentation and resources
