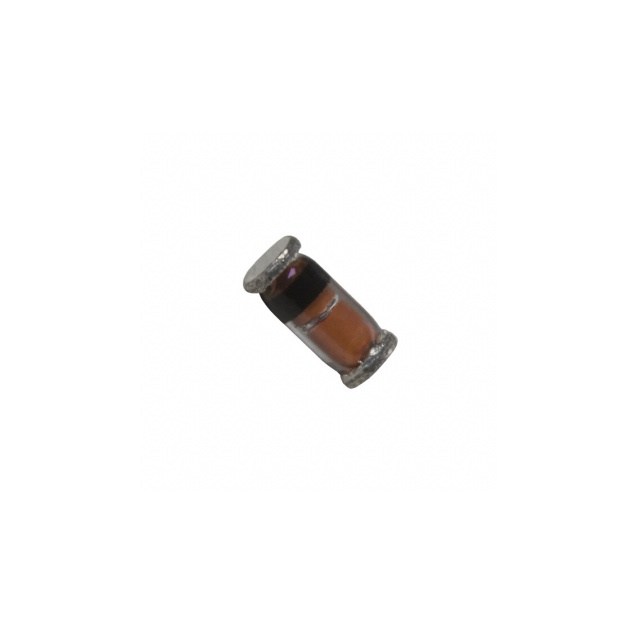

CLL4625 TR TIN/LEAD
ObsoleteCentral Semiconductor Corp
DIODE ZENER SMD
CLL4625 TR TIN/LEAD
ObsoleteCentral Semiconductor Corp
DIODE ZENER SMD
Description
General part information
CLL4625 Series
Zener Diode 5.1 V 500 mW ±5% Surface Mount SOD-80
Technical Specifications
Parameters and characteristics for this part
| Specification | CLL4625 TR TIN/LEAD |
|---|---|
| Current - Reverse Leakage | 10 µA |
| Impedance (Max) (Zzt) | 1500 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | MINI-MELF, SOD-80, DO-213AC |
| Package Name | SOD-80 |
| Power - Max | 0.5 W |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) | 1 V |
| Voltage - Zener (Nom) (Vz) | 5.1 V |
