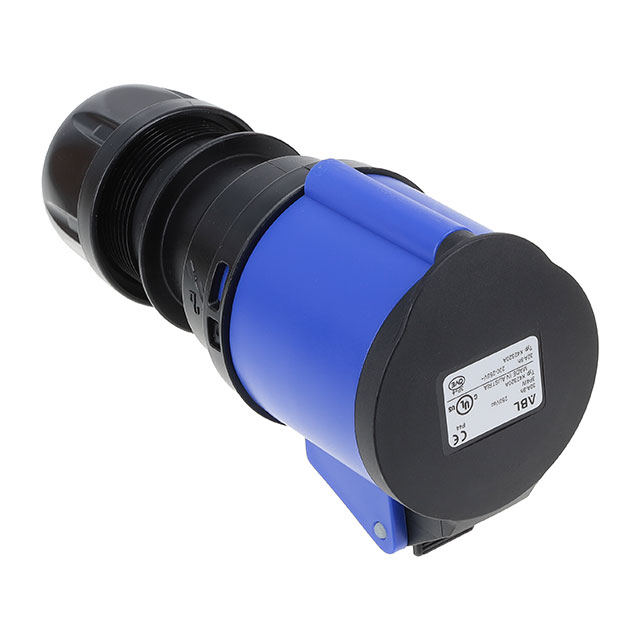

Specification	K42S20A

Approval Agency	cULus
Connector Style	Pin and Sleeve (3P4W)
Connector Type	Female Sockets, Plug
Current Rating	30 A
Features	Push-Twist Lock, Impact Resistant, Cover, Cord Grip, Chemical Resistant, Strain Relief
Ingress Protection	IP44
Material Flammability Rating	UL94 V-2
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Termination	Screw
Voltage Rating	250 V

K42S Series

Part	Features	Termination	Mounting Type	Voltage Rating	Material Flammability Rating	Approval Agency	Number of Positions	Connector Type	Ingress Protection	Current Rating	Connector Style	Ingress Protection Description	Ingress Protection IP Rating	Voltage Rating (Option 1)	Voltage Rating (Option 2)
Altech Corporation K42S60A
Altech Corporation K42S05A
Altech Corporation K42S30A	Chemical Resistant Cord Grip Cover Impact Resistant Push-Twist Lock Strain Relief	Screw	Free Hanging (In-Line)	380 V	UL94 V-2	cULus	4	Female Sockets Receptacle	IP44	30 A	Pin and Sleeve (3P4W)
Altech Corporation K42S00A
Altech Corporation K42S75A
Altech Corporation K42S55A	Chemical Resistant Cord Grip Cover Impact Resistant Push-Twist Lock Strain Relief	Screw	Free Hanging (In-Line)	480 VAC	UL94 V-2	cULus	4	Female Sockets Receptacle		30 A	Pin and Sleeve (3P4W)	Dust Tight Waterproof	IP67
Altech Corporation K42S25A
Altech Corporation K42S65A	Chemical Resistant Cord Grip Cover Impact Resistant Push-Twist Lock Strain Relief	Screw	Free Hanging (In-Line)		UL94 V-2	cULus	4	Female Sockets Receptacle		30 A	Pin and Sleeve (3P4W)	Dust Tight Waterproof	IP67	120 VAC	250 VAC
Altech Corporation K42S20A	Chemical Resistant Cord Grip Cover Impact Resistant Push-Twist Lock Strain Relief	Screw	Free Hanging (In-Line)	250 V	UL94 V-2	cULus	4	Female Sockets Plug	IP44	30 A	Pin and Sleeve (3P4W)
Altech Corporation K42S50A	Chemical Resistant Cord Grip Cover Impact Resistant Push-Twist Lock Strain Relief	Screw	Free Hanging (In-Line)	480 VAC	UL94 V-2	cULus	4	Female Sockets Receptacle	IP44	30 A	Pin and Sleeve (3P4W)
