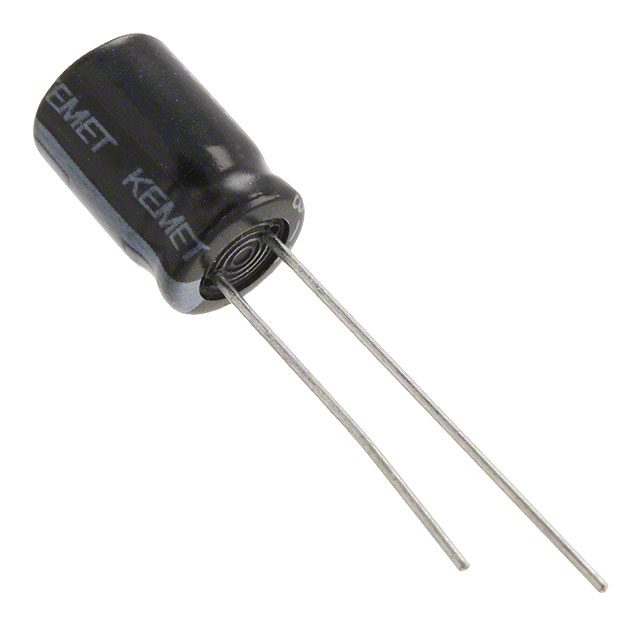

ESY107M050AG3AA - ESY8-SERIES

ESY107M050AG3AA

Active
KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 50V, 20% +TOL, 20% -TOL, 100UF, THROUGH HOLE MOUNT, RADIAL LEADED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_A4007_ESY.pdfDatasheet+2
ESY107M050AG3AA - ESY8-SERIES

ESY107M050AG3AA

Active
KEMET

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 50V, 20% +TOL, 20% -TOL, 100UF, THROUGH HOLE MOUNT, RADIAL LEADED

Deep-Dive with AI

DocumentsKEM_A4007_ESY.pdfDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationESY107M050AG3AA
ApplicationsGeneral Purpose
Capacitance100 µF
ESR (Equivalent Series Resistance)74 mOhm
Height - Seated (Max) [Max]0.492 in
Height - Seated (Max) [Max]12.5 mm
Impedance74 mOhms
Lead Spacing3.5 mm
Lead Spacing0.138 in
Lifetime @ Temp.3000 Hrs
Mounting TypeThrough Hole
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Package / CaseRadial, Can
PolarizationPolar
Ripple Current @ High Frequency730 mA
Ripple Current @ Low Frequency511 mA
Size / Dimension [diameter]0.315 "
Size / Dimension [diameter]8 mm
Tolerance20 %
Voltage - Rated50 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.43
10$ 0.28
100$ 0.17
1000$ 0.11
6000$ 0.10
12000$ 0.09
NewarkEach 10$ 0.30
25$ 0.27
50$ 0.23
100$ 0.19
500$ 0.16
1000$ 0.14
2500$ 0.13

Description

General part information

ESY107M Series

100 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 74mOhm @ 100kHz 3000 Hrs @ 105°C
