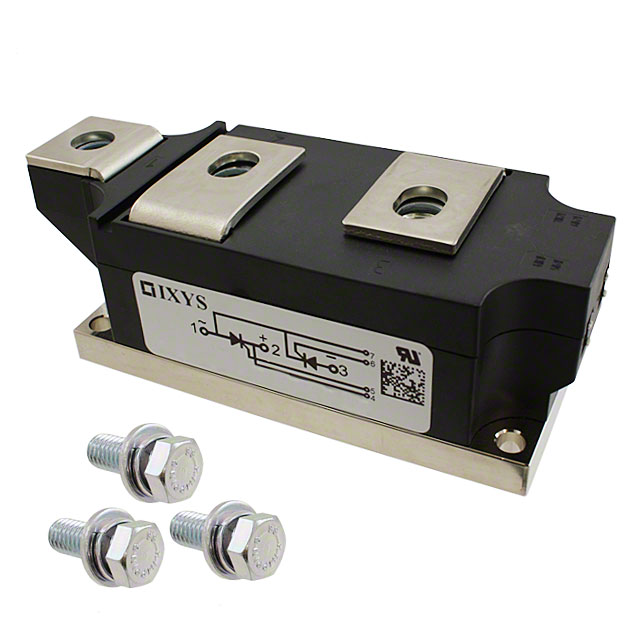

MCC501-16IO2

Active

IXYS

SCR THY PHASE LEG 1600V WC-501

Search across all available documentation for this part.

Active

IXYS

SCR THY PHASE LEG 1600V WC-501

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Structure	Number of SCRs, Diodes	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm)
IXYS MCC501-14IO2	Module	Series Connection - All SCRs	2 SCRs	-40 °C	125 ¯C	Chassis Mount	1.4 kV	14500 A
IXYS MCC501-12IO2	Module	Series Connection - All SCRs	2 SCRs	-40 °C	125 ¯C	Chassis Mount	1.2 kV	14500 A
IXYS MCC501-12IO1	WC-501	Series Connection - All SCRs	2 SCRs	-40 °C	125 ¯C	Chassis Mount	1.2 kV
IXYS MCC501-18IO2	WC-501	Series Connection - All SCRs	2 SCRs	-40 °C	125 ¯C	Chassis Mount	1.8 kV	14500 A
IXYS MCC501-14IO1	WC-501	Series Connection - All SCRs	2 SCRs	-40 °C	125 ¯C	Chassis Mount	1.4 kV
IXYS MCC501-16IO2	WC-501	Series Connection - All SCRs	2 SCRs	-40 °C	125 ¯C	Chassis Mount	1.6 kV	14500 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	24	$ 183.76

General part information

SCR Module 1.6 kV Series Connection - All SCRs Chassis Mount WC-501

Technical documentation and resources

No documents available
