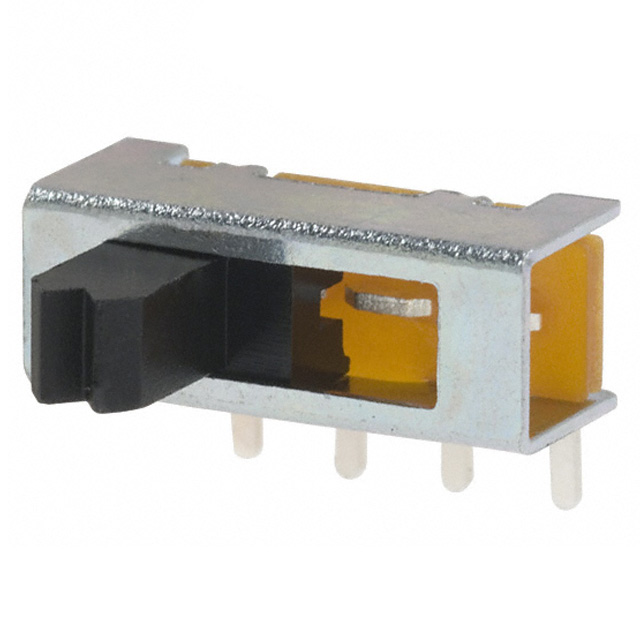

2-1437577-6

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE SP3T 250MA 125V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE SP3T 250MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	2-1437577-6

Actuator Length [x]	5 mm
Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Type	Standard
Circuit	SP3T
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Non-Shorting
Current Rating (Amps)	150 mA, 250 mA
Electrical Life	6000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	10000 Steps
Mounting Type	Through Hole, Right Angle
Operating Force	0.25 kgf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-10 °C
Switch Function	On-On-On
Switch Travel	3.2 mm
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	12 V

Part	Electrical Life	Actuator Material	Features	Actuator Length [x]	Actuator Type	Voltage Rating - DC	Switch Travel	Operating Force	Current Rating (Amps)	Contact Timing	Circuit	Termination Style	Contact Material	Contact Finish	Switch Function	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life	Mounting Type
TE Connectivity Raychem Cable Protection 2-1437577-6	6000 Cycles	Polybutylene Terephthalate (PBT)	Epoxy Sealed Terminals	5 mm	Standard	12 V	3.2 mm	0.25 kgf	150 mA 250 mA	Non-Shorting	SP3T	PC Pin	Copper Alloy	Silver	On-On-On	125 V	-10 °C	85 °C	10000 Steps	Through Hole Right Angle
TE Connectivity Raychem Cable Protection 8-1437577-1		Polyoxymethylene (Acetal) (POM)	Epoxy Sealed Terminals	5 mm	Standard		2.5 mm	0.25 kgf	300 mA	Shorting	DPDT	PC Pin	Copper Alloy	Silver	On-On	125 V	-10 °C	60 °C	10000 Steps	Through Hole Right Angle
TE Connectivity Raychem Cable Protection 3-1437577-7	6000 Cycles	Polybutylene Terephthalate (PBT)	Epoxy Sealed Terminals	4.8 mm	Standard		2.69 mm	350 gf	500 mA	Non-Shorting	DPDT	Solder Lug	Copper Alloy	Silver	On-On	125 V	-20 C	85 °C	10000 Steps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Slide Switch SP3T Through Hole, Right Angle
