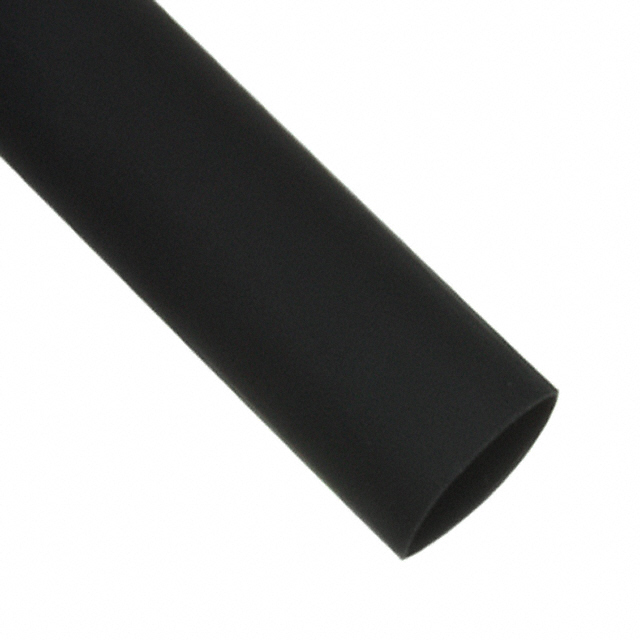

Specification	Q2-F-5/16-01-SS250FT

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered	0.157 in
Inner Diameter - Supplied	0.315 in
Length	0.062 ft, 1.5 in, 0.5 ft, 0.083 ft, 0.042 ft, 250 ft, 0.333 ft, 3 ", 2.004 in
Length	Enter Number of Feet in Order Quantity
Material	Polyolefin (PO)
Operating Temperature (Max)	135 °C
Operating Temperature (Min)	-55 °C
Recovered Wall Thickness	0.024 in
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2
Spool Size	250 ft
Storage/Refrigeration Temperature (Maximum)	104 °F
Storage/Refrigeration Temperature (Minimum)	-50 °F
Type	Flexible, Tubing

Q2-F-5/16 Series

Part	Length	Length	Features	Material	Inner Diameter - Supplied	Shelf Life	Recovered Wall Thickness	Type	Shrink Temperature	Inner Diameter - Recovered	Operating Temperature (Min)	Operating Temperature (Max)	Color	Storage/Refrigeration Temperature (Minimum)	Storage/Refrigeration Temperature (Maximum)	Shrinkage Ratio	Spool Size
Qualtek Q2-F-5/16-01-SS250FT	0.042 ft 0.062 ft 0.083 ft 0.333 ft 0.5 ft 1.5 in 2.004 in 3 " 250 ft	Enter Number of Feet in Order Quantity	Flame Retardant	Polyolefin (PO)	0.315 in	144 Months	0.024 in	Flexible Tubing	70 °C	0.157 in	-55 °C	135 °C	Black	-50 °F	104 °F	2	250 ft
