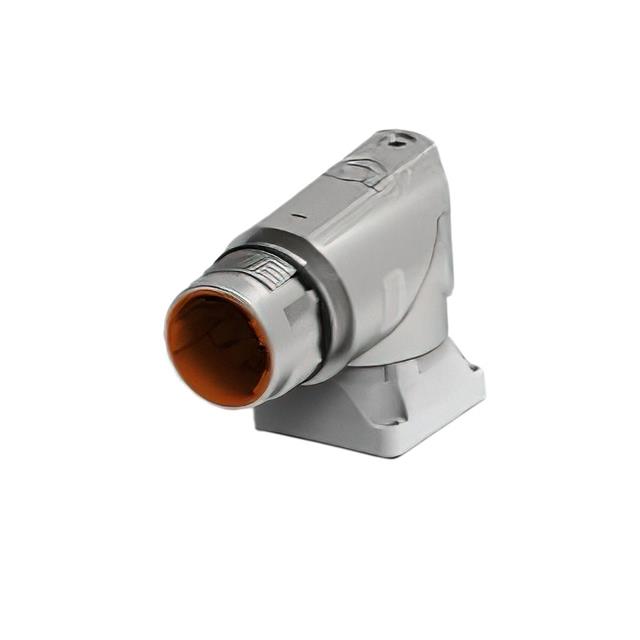

Specification	BGC110N00001200000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Rotatable, Backshell
Housing Color	Silver
Includes	Connector, O-Ring, Backshell
Includes Total Count	3 pcs
Ingress Protection Description	Dust Tight, Waterproof, Water Resistant
Ingress Protection IP Rating	IP67, IP66
Insert Material	Polyamide, Nylon 6/6, PA66
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount, Right Angle
Note	Contacts Not Included
Number of Positions	8
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-20 °C
Orientation	Keyed
Position Types	PE, Power
Shell Finish	Chromate
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-8
Shielding	Unshielded
Type	For Male Pins

BGC11 Series

Part	Mounting Type	Type	Connector Type	Number of Positions	Position Types	Contact Shape	Shielding	Ingress Protection Description	Ingress Protection IP Rating	Shell Material	Housing Color	Fastening Type	Note	Insert Material	Orientation	Material Flammability Rating	Includes Total Count	Includes	Operating Temperature (Min)	Operating Temperature (Max)	Features	Mounting Feature	Shell Finish	Shell Size - Insert
TE Intercontec BGC110N00001116000	Panel Mount Right Angle	For Male Pins	Receptacle Housing	8	PE Power	Circular	Unshielded	Dust Tight Water Resistant Waterproof	IP66 IP67	Zinc Die Cast	Silver	Push-Twist	Contacts Not Included	Nylon 6/6 PA66 Polyamide	Keyed	UL94 V-0	3 pcs	Backshell Connector O-Ring	-20 °C	130 °C	Backshell Rotatable	Flange	Chromate	M23-8
TE Intercontec BGC110N00001200000	Panel Mount Right Angle	For Male Pins	Receptacle Housing	8	PE Power	Circular	Unshielded	Dust Tight Water Resistant Waterproof	IP66 IP67	Zinc Die Cast	Silver	Push-Twist	Contacts Not Included	Nylon 6/6 PA66 Polyamide	Keyed	UL94 V-0	3 pcs	Backshell Connector O-Ring	-20 °C	130 °C	Backshell Rotatable	Flange	Chromate	M23-8
TE Intercontec BGC110N00001216000	Panel Mount Right Angle	For Male Pins	Receptacle Housing	8	PE Power	Circular	Unshielded	Dust Tight Water Resistant Waterproof	IP66 IP67	Zinc Die Cast	Silver	Push-Twist	Contacts Not Included	Nylon 6/6 PA66 Polyamide	Keyed	UL94 V-0	3 pcs	Backshell Connector O-Ring	-20 °C	130 °C	Backshell Rotatable	Flange	Chromate	M23-8
