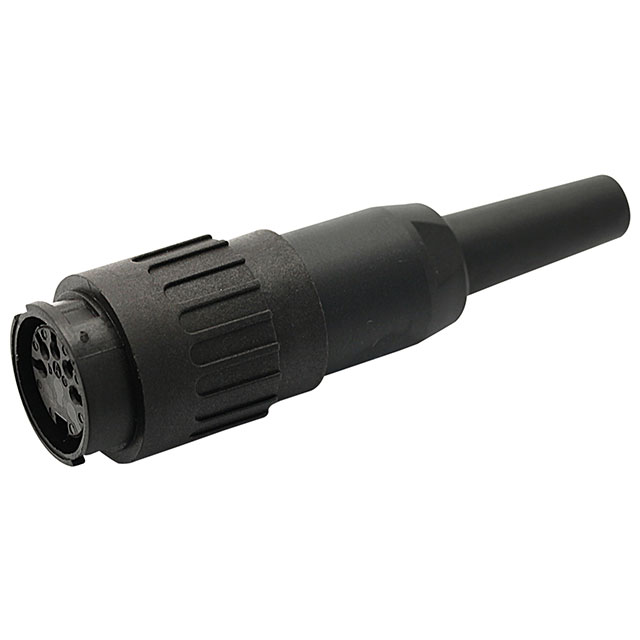

T 3378 551

Active

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 5POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 5POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	T 3378 551

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Cable Clamp, Strain Relief, Coupling Nut
Housing Color	Black
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Plastic
Shell Size - Insert	M16-5
Shielding	Unshielded
Type	For Female Sockets

Part	Ingress Protection	Shell Material	Contact Finish - Mating	Voltage Rating	Features	Orientation	Mounting Type	Fastening Type	Shell Size - Insert	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Current Rating (Amps)	Contact Type	Contact Shape	Note	Contact Size	Shielding	Housing Color	Type	Insert Material	Material Flammability Rating
Amphenol Tuchel Industrial T 3378 501	IP40	Plastic	Silver	250 VDC	Strain Relief	Keyed	Free Hanging (In-Line)	Bayonet Lock	M16-5	Female Sockets Plug	100 °C	-40 °C	Plastic	7 A
Amphenol Tuchel Industrial T 3378 552	IP40	Plastic			Backshell Cable Clamp Coupling Nut	Keyed	Free Hanging (In-Line)	Bayonet Lock	M16-5	Plug Housing	100 °C	-40 °C			Crimp	Circular	Contacts Not Included	1.5 mm	Unshielded	Black	For Female Sockets	Thermoplastic	UL94 V-0
Amphenol Tuchel Industrial T 3378 502	IP40	Plastic	Silver	250 VDC	Cable Clamp Strain Relief	Keyed	Free Hanging (In-Line)	Bayonet Lock	M16-5	Female Sockets Plug	100 °C	-40 °C	Plastic	7 A
Amphenol Tuchel Industrial T 3378 551	IP40	Plastic			Cable Clamp Coupling Nut Strain Relief	Keyed	Free Hanging (In-Line)	Bayonet Lock	M16-5	Plug Housing	100 °C	-40 °C			Crimp	Circular	Contacts Not Included	1.5 mm	Unshielded	Black	For Female Sockets	Thermoplastic	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 6.83

General part information

5 Position Circular Connector Plug Housing Free Hanging (In-Line) Cable Clamp, Coupling Nut, Strain Relief
