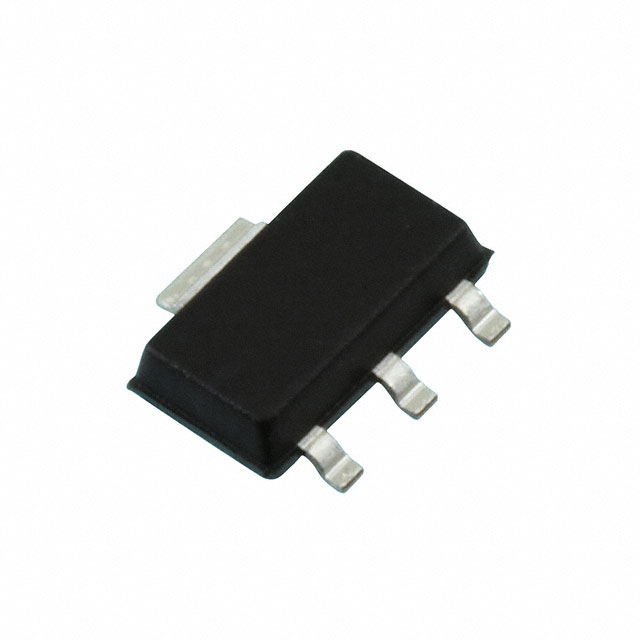

HAL1822SF-A

Obsolete

TDK-Micronas GmbH

SENSOR HALL ANALOG SOT89B-1

Search across all available documentation for this part.

Obsolete

TDK-Micronas GmbH

SENSOR HALL ANALOG SOT89B-1

Technical Specifications

Parameters and characteristics for this part

SENSOR HALL ANALOG SOT89B-1

Part	Axis	Features	Package / Case	Technology	Sensing Range [Max]	Sensing Range [Min]	Resolution	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Supplier Device Package	Bandwidth	Output Type	Current - Supply (Max) [Max]	Current - Output (Max) [Max]
TDK-Micronas GmbH HAL1822SF-A	Single	Temperature Compensated	TO-243AA, Variant	Hall Effect	2.3 mT	-2.3 mT	10 b	4.5 V	5.5 V	Surface Mount	SOT-89B-1	2.5 kHz	Analog Voltage	10 mA	1 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Hall Effect Sensor Single Axis SOT-89B-1
