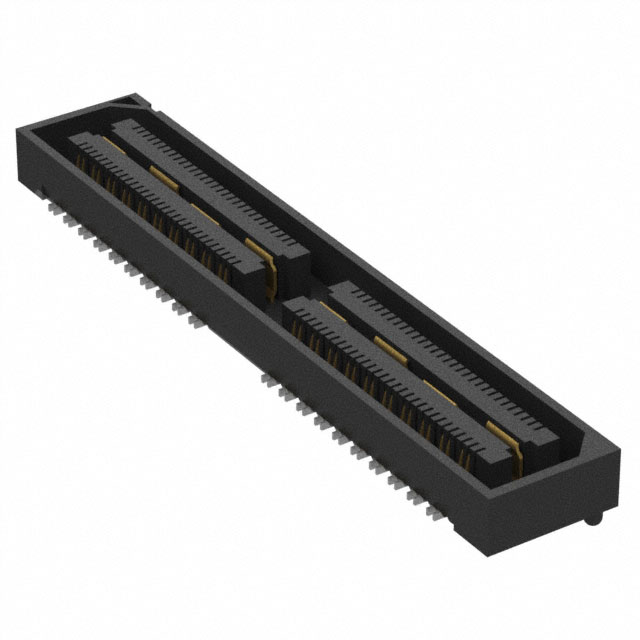

QSH-040-01-F-D-DP-A-TR

Active

Samtec Inc.

0.5MM 2 80P VERTICAL WELDING SMD,P=0.5MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Deep-Dive with AI

Search across all available documentation for this part.

QSH-040-01-F-D-DP-A-TR

Active

Samtec Inc.

0.5MM 2 80P VERTICAL WELDING SMD,P=0.5MM BOARD-TO-BOARD AND BACKPLANE CONNECTOR ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QSH-040-01-F-D-DP-A-TR

Connector Type	Differential Pair Array, Female
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	5 mm, 25 mm, 8 mm, 16 mm, 11 mm, 14 mm, 19 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

QSH-040 Series

Headers & Wire Housings

Part	Connector Type	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows	Mated Stacking Heights	Features
Samtec Inc. QSH-040-01-H-D-DP-A-TR	Differential Pair Array Female	0.5 mm	0.02 in	3.25 mm	0.128 in	Gold	80	0.76 Ám	30 Áin	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm
Samtec Inc. QSH-040-01-C-D-DP-A-K-TR	Differential Pair Array Female	0.5 mm	0.02 in	3.25 mm	0.128 in	Gold	80	1.27 µm	50 µin	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QSH-040-01-L-D-DP-A-GP	Differential Pair Array Female	0.5 mm	0.02 in	3.25 mm	0.128 in	Gold	80	0.25 Ám	10 Áin	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Board Guide Ground Bus (Plane) Mating Flange
Samtec Inc. QSH-040-01-F-D-DP-A-GP	Differential Pair Array Female	0.5 mm	0.02 in	3.25 mm	0.128 in	Gold	80	0.076 Ám	3 Áin	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Board Guide Ground Bus (Plane) Mating Flange
Samtec Inc. QSH-040-01-C-D-DP-A-TR	Differential Pair Array Female	0.5 mm	0.02 in	3.25 mm	0.128 in	Gold	80	1.27 µm	50 µin	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm
Samtec Inc. QSH-040-01-L-D-DP-A	Differential Pair Array Female	0.5 mm	0.02 in	3.25 mm	0.128 in	Gold	80	0.25 Ám	10 Áin	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm
Samtec Inc. QSH-040-01-L-D-DP-A-K	Differential Pair Array Female	0.5 mm	0.02 in	3.25 mm	0.128 in	Gold	80	0.25 Ám	10 Áin	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QSH-040-01-F-D-DP-EM2	Differential Pair Array Female	0.5 mm	0.02 in			Gold	80	0.076 Ám	3 Áin	Board Edge Straddle Mount	2		Ground Bus (Plane)
Samtec Inc. QSH-040-01-F-D-DP-A-TR	Differential Pair Array Female	0.5 mm	0.02 in	3.25 mm	0.128 in	Gold	80	0.076 Ám	3 Áin	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm
Samtec Inc. QSH-040-01-F-D-DP-A-K-TR	Differential Pair Array Female	0.5 mm	0.02 in	3.25 mm	0.128 in	Gold	80	0.076 Ám	3 Áin	Surface Mount	2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Board Guide Ground Bus (Plane) Pick and Place
