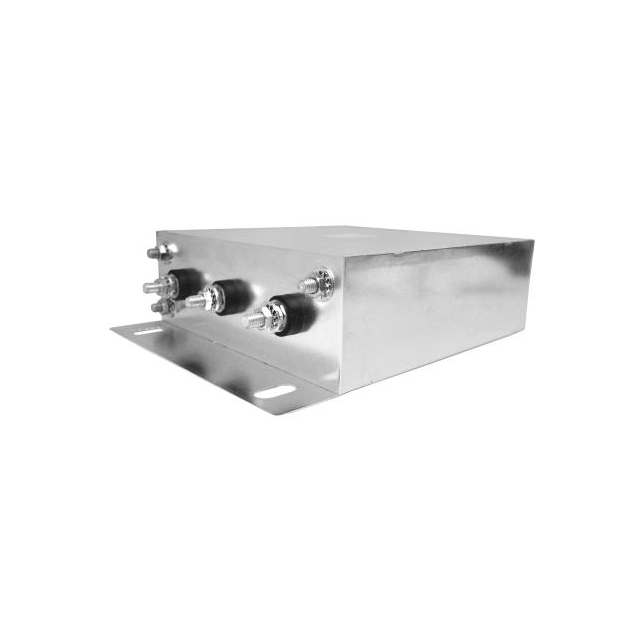

RPMC5014-63

Active

Astrodyne TDI

LINE FILTER 480VAC 63A CHASSIS

Search across all available documentation for this part.

Active

Astrodyne TDI

LINE FILTER 480VAC 63A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Specification	RPMC5014-63

Configuration	Single Stage
Current	63 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Threaded Post (3/8-16)
Voltage - Rated AC	480 V
Voltage - Rated AC (Phase to Ground/Neutral)	2.2 kV

Part	Voltage - Rated AC	Operating Temperature [custom]	Filter Type	Voltage - Rated AC (Phase to Ground/Neutral)	Frequency - Operating [Max]	Frequency - Operating [Min]	Configuration	Termination Style	Current	Mounting Type
Astrodyne TDI RPMC5014-63	480 V	-25 °C 100 °C	Three Phase (Delta)	2.2 kV	60 Hz	50 Hz	Single Stage	Threaded Post (3/8-16)	63 A	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2239.10

General part information

Three Phase (Delta) EMC/EMI Line Filter 63 A 480V 50/60Hz Single Stage Threaded Post (3/8-16)
