FS450R12KE3BOSA1

NRND

Infineon Technologies

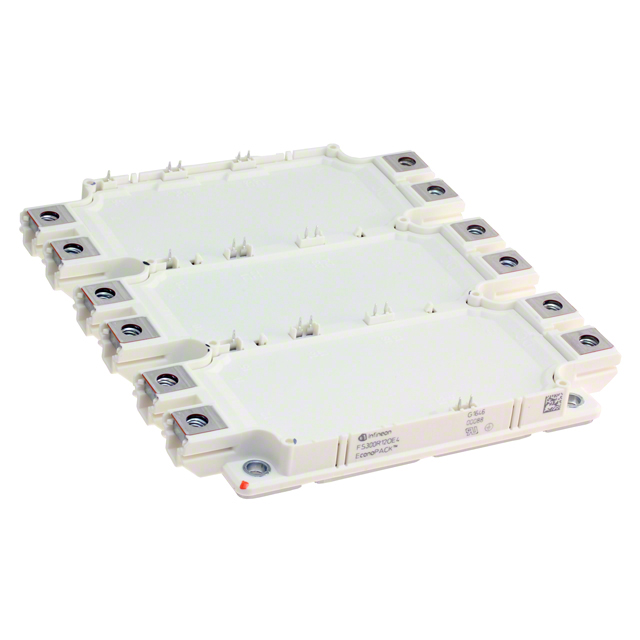

THE FS450R12KE3 IS A SIXPACK IGBT3 - E3 MODULE IN A ECONOPACK™ + B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 450 A.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FS450R12KE3BOSA1

NRND

Infineon Technologies

THE FS450R12KE3 IS A SIXPACK IGBT3 - E3 MODULE IN A ECONOPACK™ + B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 450 A.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FS450R12KE3BOSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	600 A
Current - Collector Cutoff (Max) [Max]	5 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	32 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	2100 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	2.15 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

FS450R12 Series

Part	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Input Capacitance (Cies) @ Vce	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Mounting Type	Input	IGBT Type	Package / Case	Vce(on) (Max) @ Vge, Ic	Power - Max [Max]	Configuration	Operating Temperature [Min]	Operating Temperature [Max]
Infineon Technologies FS450R12KE3BOSA1	Module	1200 V	32 nF	5 mA	600 A	Chassis Mount	Standard	Trench Field Stop	Module	2.15 V	2100 W	Three Phase Inverter	-40 °C	125 ¯C
Infineon Technologies FS450R12OE4B81BPSA1	AG-ECONOPP	1200 V	27.9 nF	3 mA	450 A	Chassis Mount	Standard	Trench Field Stop	Module	2.1 V	20 mW	Three Phase Inverter	-40 °C	150 °C
Infineon Technologies FS450R12OE4PBOSA1	Module	1200 V	1.55 nF	3 mA	900 A	Chassis Mount	Standard	Trench Field Stop	Module	2.1 V	20 mW	Full Bridge
Infineon Technologies FS450R12KE4BOSA1	Module	1200 V	28 nF	3 mA	675 A	Chassis Mount	Standard	Trench Field Stop	Module	2.1 V	2250 W	Full Bridge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 659.41
		12	$ 636.41

Description

General part information

FS450R12 Series

EconoPACK™ + B-series 1200V sixpackIGBT modulewith TRENCHSTOP™ IGBT3 and Emitter Controlled HE diode. ALso find ourEconoPACK+ D-seriesfor new design:FS450R12OE4
