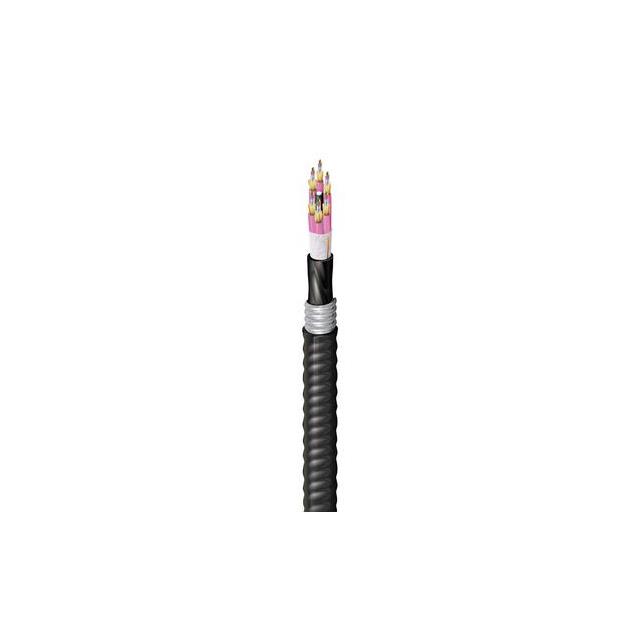

FD4D072AK

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FD4D072AK

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	50 µm
Features	Armored, 72 Fibers
Jacket (Insulation) Diameter [diameter]	1.11 in
Jacket (Insulation) Diameter [diameter]	28.19 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Ratings	OFCP
Style	Multiple Fibers
Tensile Strength	81.6 kg
Type	Multimode

Part	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Features	Jacket Color	Cladding Diameter [diameter]	Type	Core Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Tensile Strength	Style	Features
Belden Inc. FD4D072FK	-40 °C	70 °C	Poly-Vinyl Chloride (PVC)	72 Fibers Armored	Black	125 µm	Multimode	50 µm	31.14 mm	1.226 in	OFCR	81.6 kg	Multiple Fibers
Belden Inc. FD4D072RK	-40 °C	70 °C	Poly-Vinyl Chloride (PVC)	Rip Cord	Black	125 µm	Multimode	50 µm	20.9 mm	0.823 in	OFNR	81.6 kg	Multiple Fibers	72 Fibers
Belden Inc. FD4D072AK	-40 °C	70 °C	Poly-Vinyl Chloride (PVC)	72 Fibers Armored	Black	125 µm	Multimode	50 µm	28.19 mm	1.11 in	OFCP	81.6 kg	Multiple Fibers
Belden Inc. FD4D072LKA	-40 °C	70 °C		Rip Cord	Aqua	125 µm	Multimode	50 µm	20.9 mm	0.823 in	OFNR	81.6 kg	Multiple Fibers	72 Fibers

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 25.67

General part information

Fiber Optic Cable Black Multimode 125µm
