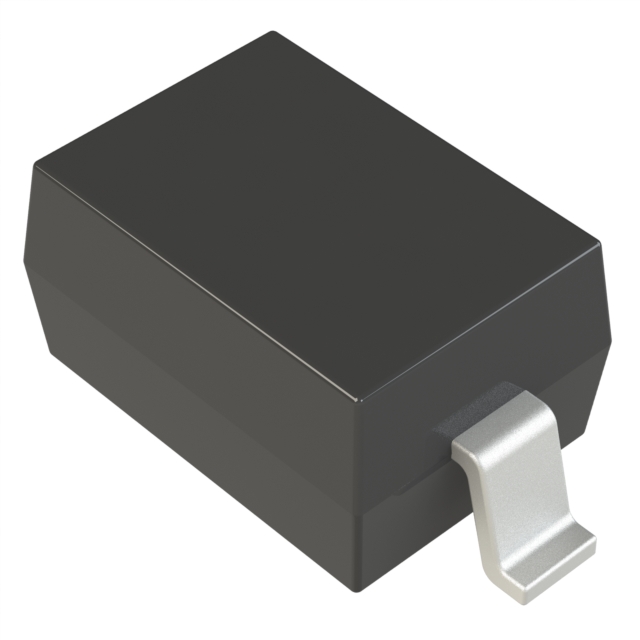

BAV19WS

Active

SMC Diode Solutions

DIODE GEN PURP 100V 200MA SOD323

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE GEN PURP 100V 200MA SOD323

Technical Specifications

Parameters and characteristics for this part

Specification	BAV19WS

Capacitance @ Vr, F	5 pF
Current - Average Rectified (Io)	200 mA
Current - Reverse Leakage @ Vr	100 nA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	SOD-323, SC-76
Reverse Recovery Time (trr)	50 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOD-323
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Speed	Speed	Voltage - Forward (Vf) (Max) @ If	Capacitance @ Vr, F	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Mounting Type	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Technology
SMC Diode Solutions BAV19WS	100 V	SC-76 SOD-323	Any Speed	200 mA	1 V	5 pF	SOD-323	150 °C	-65 C	100 nA	Surface Mount	50 ns	200 mA	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 100 V 200mA Surface Mount SOD-323
