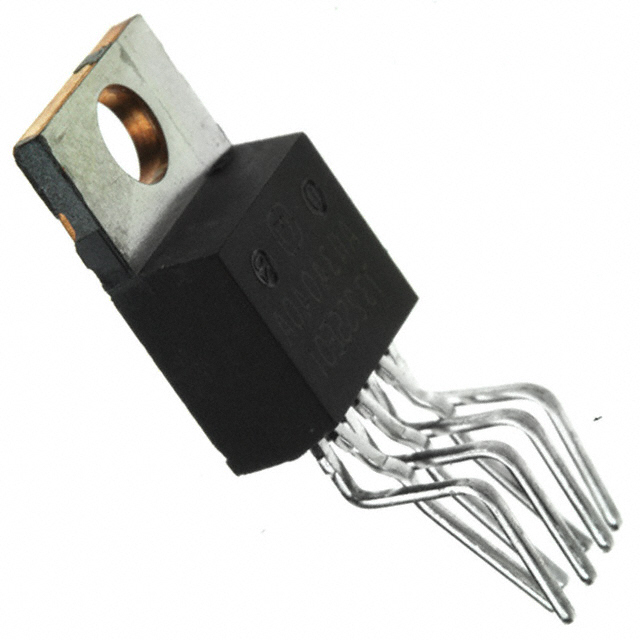

AN34040A
ObsoletePanasonic Industrial Automation Sales
IC REG BCK 3.3V/5V/9V TRPL TO220
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AN34040A
ObsoletePanasonic Industrial Automation Sales
IC REG BCK 3.3V/5V/9V TRPL TO220
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AN34040A |
|---|---|
| Function | Step-Down |
| Mounting Type | Through Hole |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | TO-220-7 |
| Supplier Device Package | TO-220-7 |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 5.5 V |
| Voltage - Output (Min/Fixed) | 3.3 V, 9 V, 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AN34040A Series
Buck Switching Regulator IC Positive Fixed 3.3V, 5V, 9V 3 Output TO-220-7
