Q-1W01E00081.5M

Active

Amphenol Custom Cable

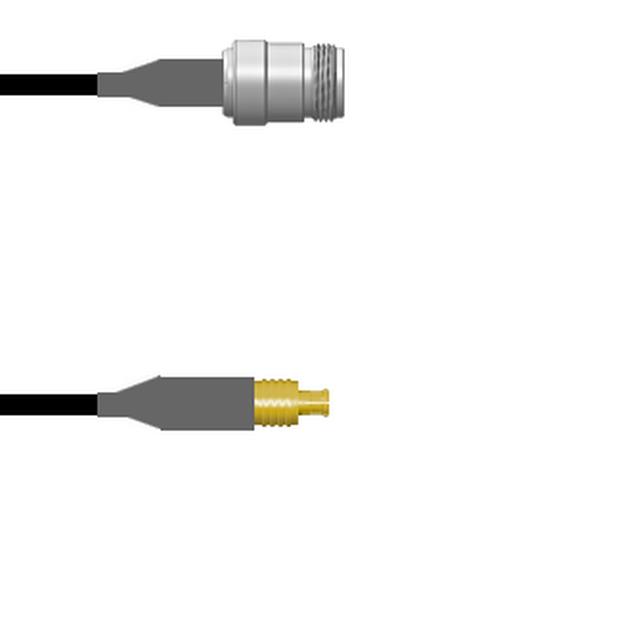

CBL ASSY MCX-NTYPE PLG-JACK 4.9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1W01E00081.5M

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE PLG-JACK 4.9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1W01E00081.5M

1st Connector	MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-1W01E0 Series

Part	2nd Connector Mounting Type	Length	Length	1st Connector Mounting Type	Features	2nd Contact Gender	2nd Connector	Style	Cable Type	Frequency - Max [Max]	Overall Impedance	1st Connector	1st Contact Gender	Color	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1W01E0008.75M	Free Hanging (In-Line)	29.53 "	750 mm	Free Hanging (In-Line)	Shielded	Female	N-Type Jack	MCX to N-Type	RG-58	6000 MHz	50 Ohms	MCX Plug	Male	Black
Amphenol Custom Cable Q-1W01E0008108i	Free Hanging (In-Line)	108 in	2.7 m	Free Hanging (In-Line)	Shielded	Female	N-Type Jack	MCX to N-Type	RG-58	6000 MHz	50 Ohms	MCX Plug	Male	Black	9 ft
Amphenol Custom Cable Q-1W01E0008018i	Free Hanging (In-Line)			Free Hanging (In-Line)	Shielded	Female	N-Type Jack	MCX to N-Type	RG-58	6000 MHz	50 Ohms	MCX Plug	Male	Black		457.2 mm	457.2 mm
Amphenol Custom Cable Q-1W01E0008006i	Free Hanging (In-Line)	6 in	152.4 mm	Free Hanging (In-Line)	Shielded	Female	N-Type Jack	MCX to N-Type	RG-58	6000 MHz	50 Ohms	MCX Plug	Male	Black
Amphenol Custom Cable Q-1W01E00080.5M	Free Hanging (In-Line)	19.69 "	50 cm	Free Hanging (In-Line)	Shielded	Female	N-Type Jack	MCX to N-Type	RG-58	6000 MHz	50 Ohms	MCX Plug	Male	Black
Amphenol Custom Cable Q-1W01E0008009i	Free Hanging (In-Line)	9 "	228.6 mm	Free Hanging (In-Line)	Shielded	Female	N-Type Jack	MCX to N-Type	RG-58	6000 MHz	50 Ohms	MCX Plug	Male	Black
Amphenol Custom Cable Q-1W01E00081.5M	Free Hanging (In-Line)	59.1 in	1.5 m	Free Hanging (In-Line)	Shielded	Female	N-Type Jack	MCX to N-Type	RG-58	6000 MHz	50 Ohms	MCX Plug	Male	Black	4.9 ft
Amphenol Custom Cable Q-1W01E0008003M	Free Hanging (In-Line)	118.1 in	3 m	Free Hanging (In-Line)	Shielded	Female	N-Type Jack	MCX to N-Type	RG-58	6000 MHz	50 Ohms	MCX Plug	Male	Black	9.8 '
Amphenol Custom Cable Q-1W01E0008072i	Free Hanging (In-Line)	72 in	1.8 m	Free Hanging (In-Line)	Shielded	Female	N-Type Jack	MCX to N-Type	RG-58	6000 MHz	50 Ohms	MCX Plug	Male	Black	6 ft
Amphenol Custom Cable Q-1W01E0008048i	Free Hanging (In-Line)	48 in	1200 mm	Free Hanging (In-Line)	Shielded	Female	N-Type Jack	MCX to N-Type	RG-58	6000 MHz	50 Ohms	MCX Plug	Male	Black	4 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 88.27
		25	$ 82.29
		50	$ 76.32
		100	$ 71.19
		250	$ 66.92

Description

General part information

Q-1W01E0 Series

Cable Assembly Coaxial MCX to N-Type RG-58 59.1" (1.5m) 4.9'

Documents

Technical documentation and resources

No documents available
