704.062.4
ActiveEAO

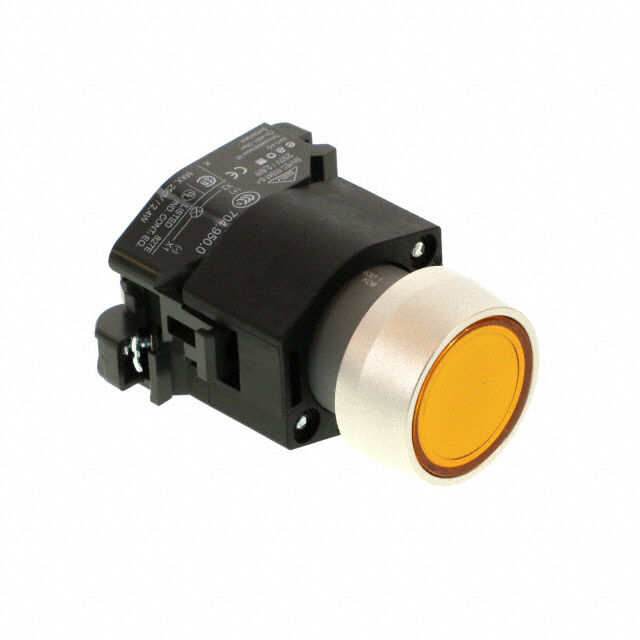

(704.062.4X) LIGHTED PUSHBUTTON/ MNT/ RND/ W-YELLOW LENS & NAT ALUM. BEZEL ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
704.062.4
ActiveEAO
(704.062.4X) LIGHTED PUSHBUTTON/ MNT/ RND/ W-YELLOW LENS & NAT ALUM. BEZEL ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 704.062.4 | 704.062 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | 04, EAO | 04, EAO |
| Actuator Type | Pushbutton, Round | Pushbutton, Round |
| Illumination | Illuminated - Yellow | Illuminated - Green, Illuminated - Yellow, Illuminated - Blue |
| Panel Cutout Dimensions | 22.3 mm | 22.3 - 30.5 mm |
| Requires | Illumination Source, Contact Block(s) | Illumination Source, Contact Block(s) |
| Type | Maintained | Maintained |
704.062 Series
CONFIG SW BODY PUSHBUTTON ILLUM
| Part | Panel Cutout Dimensions | (Select First, Then Apply Filters) Compatible Series | Illumination | Requires | Actuator Type | Type |
|---|---|---|---|---|---|---|
EAO 704.062.5 | 22.3 mm | 04, EAO | Illuminated - Green | Contact Block(s), Illumination Source | Pushbutton, Round | Maintained |
EAO 704.062.418 | 30.5 mm | 04, EAO | Illuminated - Yellow | Contact Block(s), Illumination Source | Pushbutton, Round | Maintained |
EAO 704.062.218 | 30.5 mm | 04, EAO | Contact Block(s), Illumination Source | Pushbutton, Round | Maintained | |
EAO 704.062.6 | 22.3 mm | 04, EAO | Illuminated - Blue | Contact Block(s), Illumination Source | Pushbutton, Round | Maintained |
EAO 704.062.518 | 30.5 mm | 04, EAO | Illuminated - Green | Contact Block(s), Illumination Source | Pushbutton, Round | Maintained |
EAO 704.062.2 | 22.3 mm | 04, EAO | Contact Block(s), Illumination Source | Pushbutton, Round | Maintained | |
EAO 704.062.4 | 22.3 mm | 04, EAO | Illuminated - Yellow | Contact Block(s), Illumination Source | Pushbutton, Round | Maintained |
EAO 704.062.618 | 30.5 mm | 04, EAO | Illuminated - Blue | Contact Block(s), Illumination Source | Pushbutton, Round | Maintained |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
704.062 Series
Configurable Switch Body Pushbutton, Round Illuminated - Yellow
