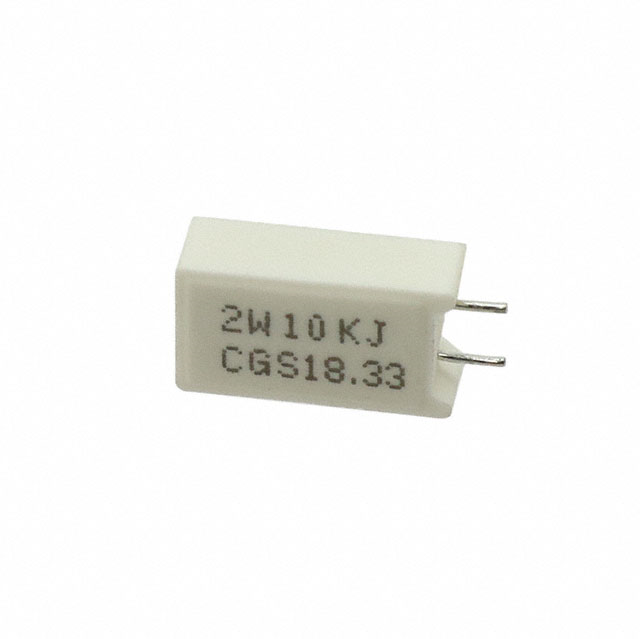

SQMR210KJ

Active

TE Connectivity Passive Product

RES 10K OHM 5% 2W RADIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 10K OHM 5% 2W RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	SQMR210KJ

Composition	Metal Film
Features	Safety, Flame Proof, Moisture Resistant
Height - Seated (Max) [Max] [z]	21 mm
Height - Seated (Max) [Max] [z]	0.827 "
Number of Terminations	2
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Power (Watts)	2 W
Resistance	10000 Ohms
Size / Dimension [x]	0.433 in
Size / Dimension [x]	11 mm
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Supplier Device Package	Radial Lead
Temperature Coefficient	300 ppm/°C
Tolerance	5 %

Part	Temperature Coefficient	Number of Terminations	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Composition	Resistance	Tolerance	Package / Case
TE Connectivity Passive Product SQMR210KJ	300 ppm/°C	2	Radial Lead	21 mm	0.827 "	7 mm	0.276 in	0.433 in	11 mm	Flame Proof Moisture Resistant Safety	-55 °C	250 °C	2 W	Metal Film	10000 Ohms	5 %	Radial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 kOhms ±5% 2W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Safety Metal Film
